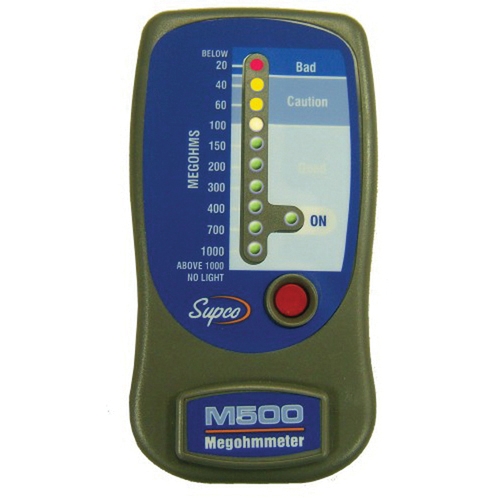

Supco M500

500 VDC Plastic LED Hand Held Megohmmeter Insulation Resistance Tester, 6-3/8 in W x 3-3/8 in H x 1-3/4 in D

  • Manufacturers: Sealed Unit Parts
  • Brand Name: Supco
  • PN: M500
  • MPN: M500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Battery Type      :      Alkaline
Color      :      Gray
Dimension      :      6-3/8 in W x 3-3/8 in H x 1-3/4 in D
Display Type      :      LED
Includes      :      (2) C Batteries, (2) 24 in Test Leads with Alligator Clips, Soft Carrying Case
Item Name      :      Megohmmeter Insulation Resistance Tester
Material      :      Plastic
Measuring Range      :      20 - 1000 MOhm
Operating Temperature      :      32 - 120 deg F
Type      :      Hand Held
Voltage Rating      :      500 VDC

An inexpensive alternative to taut band (swing needle) megohmmeters, the M500 provides fast and accurate measurements to verify the condition of the insulation.

  • Zone scale to indicate insulation condition
  • Measure insulation values up to 1000 MOhm at 500 VAC
  • Test leads store in case
  • Operates on 2 C batteries
  • Impact-resistant

Standards/Certifications: California Proposition 65

Applications: For hermetic refrigeration compressors, appliances, panel boards, relay control circuits, motors
