Yellow Jacket 69020

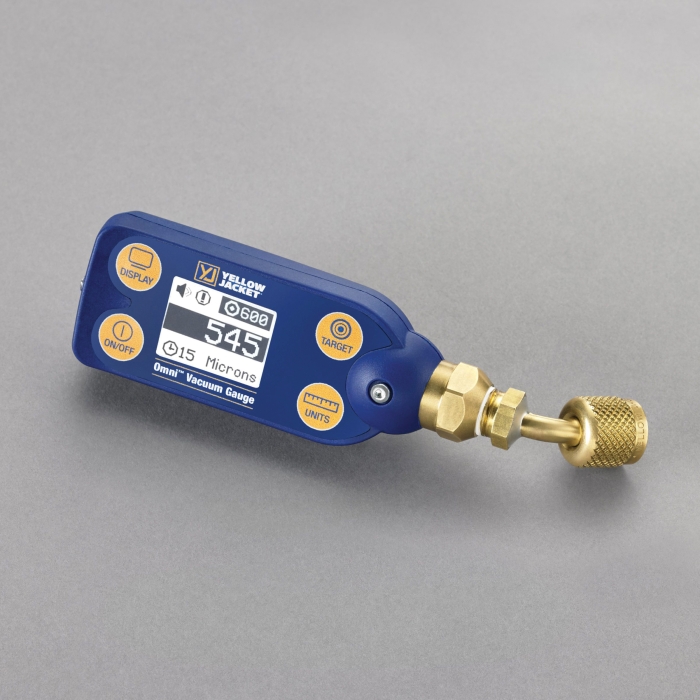

Omni Reinforced Glass Digital Vacuum Gauge with 1/4 in Coupler, 5 - 25000 micron Measuring Range

  • Manufacturers: Ritchie Engineering
  • Brand Name: Yellow Jacket
  • PN: RC69020
  • MPN: 69020
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 20% of reading
Height      :      1.6 in
Item Name      :      Vacuum Gauge with 1/4 in Coupler
Length      :      6 in
Material      :      Reinforced Glass
Measuring Range      :      5 - 25000 micron
Resolution      :      1 -100 micron
Sub Brand      :      Omni
Temperature Rating      :      32 - 104 deg F
Type      :      Digital
Width      :      1.6 in

The yellow jacket omni digital vacuum gauge is an easy-to-use, compact vacuum gauge that is loaded with features for the price. And it's rugged too. With a high impact, glass reinforced housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr and Pascal).

  • Broad sensor range
  • Visual signal when target vacuum level is reached
  • Electronic paper display for clear visibility - even in direct sunlight
  • Rich and intuitive user interface - turn it on and its ready to use with default settings
  • 45 deg bend for fitting (1/4 in or 5/16 in)
  • Automatic power down and time out
  • Power savings - multiple time-out selections
  • Low battery indicator and automatic power-down when inactive
  • Adapter fittings available
  • 1-year warranty
  • Made in the USA

Standards/Certifications: IP50 Rated

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31878_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31878_Spec.pdf
