Lawler 73100-10

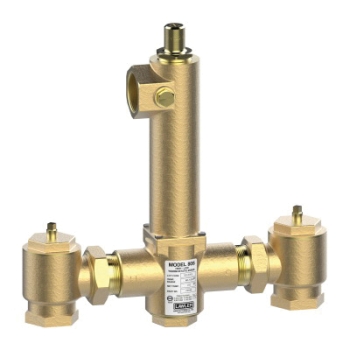

805 Rough Bronze High-Low Thermostatic Mixing Control Valve, 2 in, NPT, 200 gpm

  • Manufacturers: Lawler Manufacturing Corporation
  • Brand Name: Lawler
  • PN: 73100-10
  • MPN: 73100-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      NPT
Flow Rate      :      200 gpm
Item Name      :      Thermostatic Mixing Control Valve
Material      :      Rough Bronze
Model      :      805
Pressure Rating      :      45 psi
Temperature Rating      :      70 - 140 deg F
Type      :      High/Low

The 805 high-low thermostatic mixing valve provides tempered water over a wide range of flows in a single valve unit. This valve provides 3-way protection from scalding upon, failure of the thermostat, shut-off of hot water, or shut-off of cold water. This 1-piece, single body valve contains a liquid-filled thermostat, a stainless steel piston and liner.

  • Lead-free

Standards/Certifications: ASSE 1017, CSA B125.3

Applications: For group showers, schools, hotels, hospitals, prisons, and nursing homes
