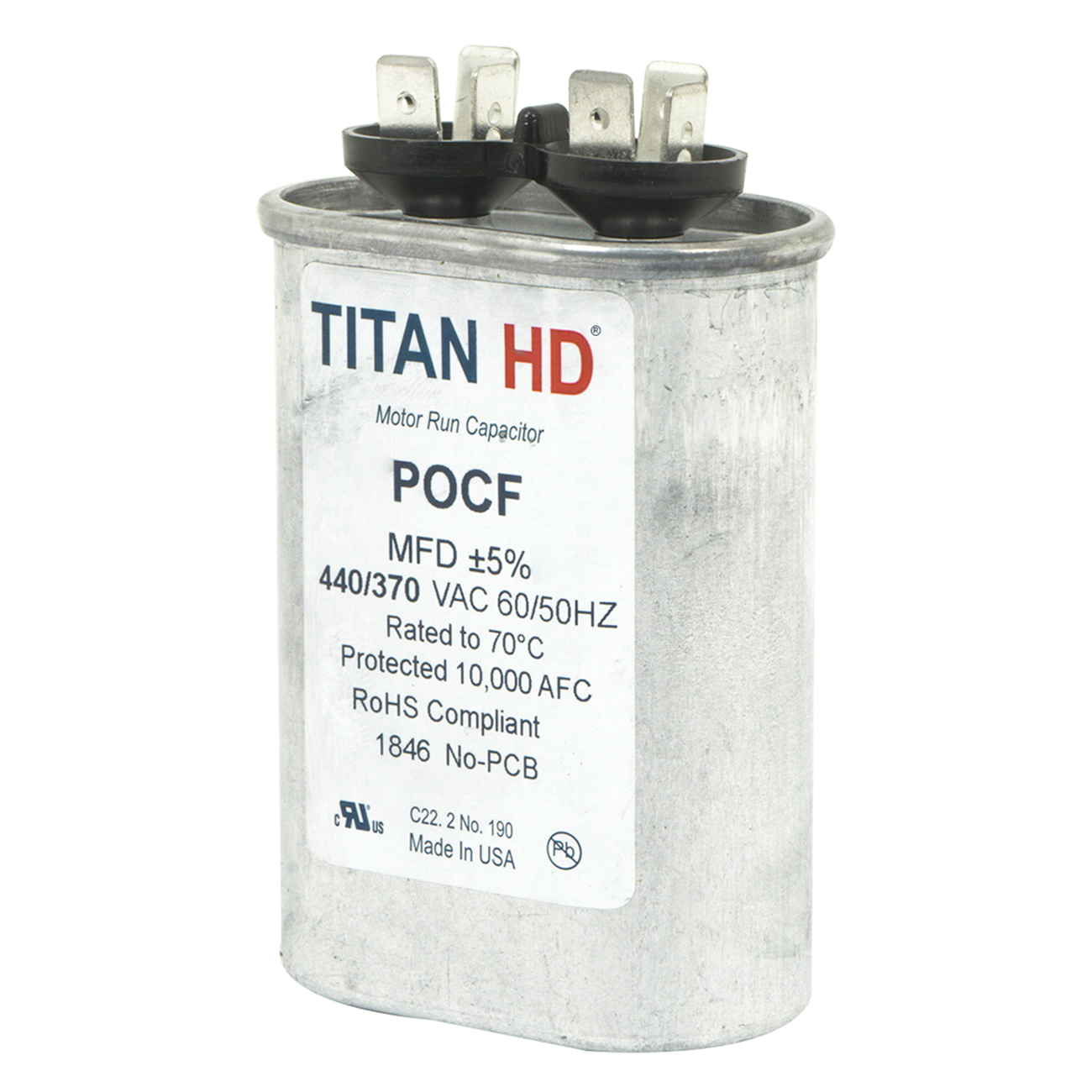

Packard POCF12.5A

Titan HD POCF Oval Aluminum Motor Single Run Capacitor, 12.5 uF, 440 VAC

  • Manufacturers: Packard
  • Brand Name: Packard
  • PN: POCF12.5A
  • MPN: POCF12.5A
  • UPC: 840899105284
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Average Life      :      60000 hr
Case Height      :      2.88 in
Case Material      :      Aluminum
Depth      :      1-1/4 in
Frequency Rating      :      50/60 Hz
Height      :      3.38 in
Item Name      :      Motor Single Run Capacitor
MFD Rating      :      12.5 uF
Series      :      POCF
Shape      :      Oval
Standard Tolerance      :      Plus/Minus 5%
Sub Brand      :      Titan HD
Temperature Rating      :      -40 to 70 deg F
Terminal Type      :      Standard Blade
Voltage Rating      :      440 VAC
Width      :      2 in
  • Manufactured using state-of-the-art, metalized polypropylene film technology for self-restoration in the event of a breakdown
  • Eye-catching packaging for retail environment
  • Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
  • Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
  • Aluminum cans filled with soybean based oil
  • Can size: 3
  • Made in USA

Standards/Certifications: cRUus listed, UL 801 and CUL listed, RoHS compliant, EIA 456A, IEC 60252
