Yellow Jacket 40875

Digital Manifold with Ball Valve, 5/16 in

  • Manufacturers: Ritchie Engineering
  • Brand Name: Yellow Jacket
  • PN: RC40875
  • MPN: 40875
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5/16 in
Item Name      :      Manifold with Ball Valve
Type      :      Digital

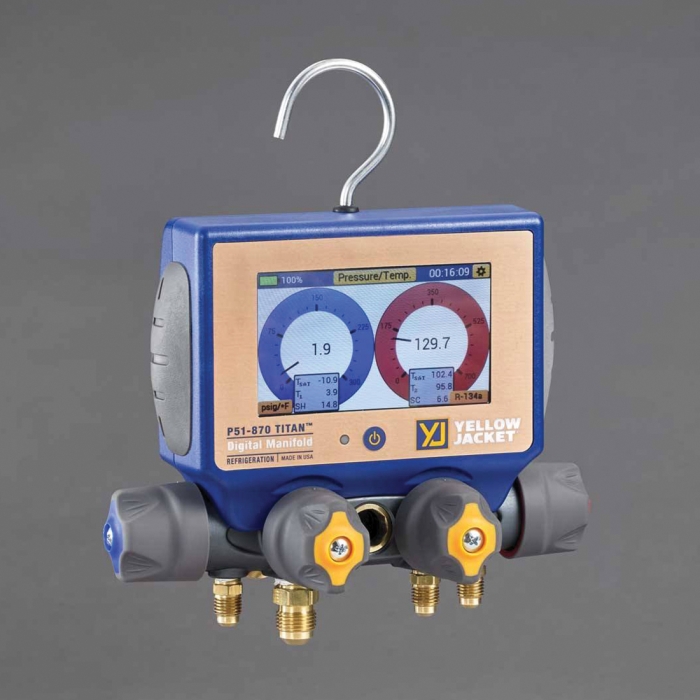

The yellow jacket P51 Titan digital manifold series provides ultimate system measurements with ease. This 4 valve manifold provides fast and accurate measurements for refrigeration and a/c systems. Measurements are displayed on a backlit digital display and can be transmitted via bluetooth to a Smartphone for even further analysis. Local display of system pressures and temperatures, superheat and subcool provide instant analysis. When connected to your Smartphone, target superheat and subcool are easily attained, along with all the other capabilities of the ManTooth app. The flagship Yellow Jacket P51-870 Titan features a 4.3 in full color touchscreen graphic display with digital and graphical representation of pressure and temperature measurements. It also features on-board data logging and standard vacuum sensor and measurements (vacuum sensor included). A 4 pack of hoses is included as well as two temperature clamps and a backpack carrying case for safe storage.

  • Displays vapor and liquid saturation temperatures
  • System superheat and subcooling calculations
  • On board data logging; export to your computer through USB or to your phone via the YJACK VIEW app for 40870, 40875 and 40877 (40860 uses the ManTooth app)
  • Pressure hold mode displays rate of change for both vacuum and positive pressure measurements
  • 4-Way Titan valve block
  • 126 refrigerant profiles stored in the instrument including new blends not currently on the refprop database
  • Backlit display with auto-dimming
  • Auto shut-off
  • Bluetooth capability
  • Re-chargeable battery with battery life indicator
  • Maximum working pressure 700 psia (48.3 bar)
  • USB charging port
  • Robust housing
  • 2-years warranty
  • Includes vacuum sensor, set of (6) 60 in manifold hoses, (3) RYB compact ball valves, (1) Y 3/8 in straight x 3/8 in 45 deg, (2) compact ball valve 1/4 in x 5/16 in, (2) temperature clamps, USB charging cable and backpack carrying case
  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31612_Cat.pdf
