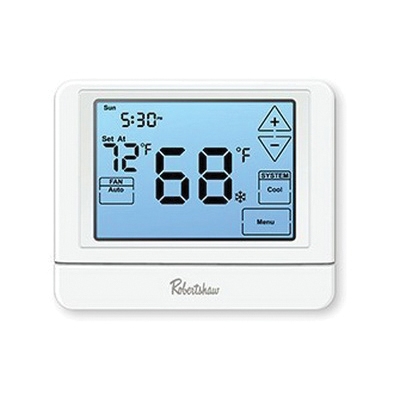

Robertshaw RS9320T

Programmable Thermostat, 3 Heat/2 Cool Conventional, 3 Heat/2 Cool Heat Pump, 24 VAC, Auto

  • Manufacturers: Robertshaw Controls
  • Brand Name: Robertshaw
  • PN: RS9320T
  • MPN: RS9320T
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 1 deg F
Changeover      :      Auto
Dimension      :      4.7 in W x 3.8 in H x 1 in D
Display Type      :      8.8 sq-in Touchscreen Blue Backlit
Frequency Rating      :      50/60 Hz
Item Name      :      Programmable Thermostat
Mounting      :      Wall/Junction Box
Power Source      :      Battery/Hardwired
Programmability      :      5-1-1 days or Non-Programmable
Series      :      RS9000
Setting Temperature      :      41 - 90 deg F
Stages      :      3 Heat/2 Cool Conventional, 3 Heat/2 Cool Heat Pump
Temperature Rating      :      32 - 99 deg F
Terminal Designation      :      Rh, Rc, C, Y, Y2, W/E, W2, G, O, B
Voltage Rating      :      24 VAC

Contractors can offer owners easy, yet powerful and reliable multi-stage temperature control in a simple, modern design with the RS9320T programmable touchscreen wall thermostat.

  • Large terminal blocks for easy installation
  • Universal sub-base
  • Quick access menu button
  • Contractor/technician setup menu
  • Easy-to-understand programming menus
  • Intuitive wake, leave, return, sleep programming icons
  • 24 VAC powered or battery operation (included)
  • Factory pre-set energy efficiency program simple, yet powerful control
  • Large, easy-to-read 8.8 sq-in blue backlit touch screen display
  • Easy-access front-load battery compartment
  • Adjustable temperature differential (swing) for energy optimization and maximum system life
  • Adjustable room temperature calibration
  • Adjustable setpoint limits
  • 5 min selectable on/off compressor delay protection for short-cycling prevention
  • Filter change reminder (selectable on/off)
  • Keypad lockout
  • 6-years limited warranty

Standards/Certifications: ISO 9001 standard

Applications: For systems with auxiliary or emergency heat
