Apollo Valves PWR7482464

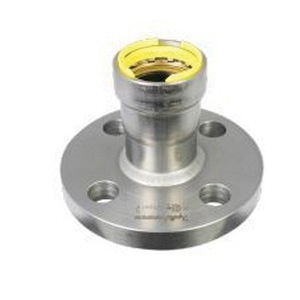

Powerpress Zinc Nickel Carbon Steel Gas Adapter, 2 in, Press x Flange, SCH 10 to 40

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: PWR7482464
  • MPN: PWR7482464
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      Press x Flange
Finish      :      Zinc Nickel
Item Name      :      Gas Adapter
Length      :      3.92 in
Material Specifications      :      ASTM A53, ASTM A106, ASTM A135, ASTM A795
Material      :      Carbon Steel
Model      :      4771G
Pressure Class      :      150 lb
Pressure Rating      :      125 psi
Schedule      :      SCH 10 to 40
Sub Brand      :      Powerpress
Temperature Rating      :      -40 to 194 deg F

Apollo Powerpress is a carbon steel press system designed to be used with Schedule 10 through 40 thick wall steel pipe for sizes ranging from 1/2 - 2 in. All Apollo power press fittings and valves are zinc-nickel coated to protect against corrosion and come equipped with either an EPDM or HNBR sealing element. In addition to a mechanical leak Before Press system, Apollo Powerpress products feature a patented, color-coded, visual control ring (VCR) not only provides installers double assurance when identifying un-pressed connections, it also optimally positions the pipe while pressing, significantly reducing pipe deflection for a far straighter and cleaner press connection. When compared to other carbon press systems, Apollo Powerpress is the undisputed leader in quality and reliability.

  • Leak before press - unpressed fittings will visibly leak during low pressure testing
  • Yellow visual control ring - patented, tabs that "break-away" when pressed, color-coded for easy identification of sealing element type, acts as a pipe guide, optimally positioning the inserted pipe, significantly reducing pipe deflection for a clean and straight connection, protects sealing element from debris or paint
  • Increased cup depths - better seat, tighter seal, straighter runs
  • Color-coded protective shipping cap protects VCR and fitting/valve ends during shipping
  • Ridgid and Milwaukee press tool compatibility
  • HNBR sealing element
  • 15-years warranty

Standards/Certifications: ARRA compliant, ASME B31, Buy American Act (BAA), CSA LC-4 approval, Canadian Registration No. (CRN), IPC code, IFGC code, NFPA 13, 13D and 13R, 54 and 58, National Plumbing Code of Canada, UPC code, UMC code
