Kohler 84325-0

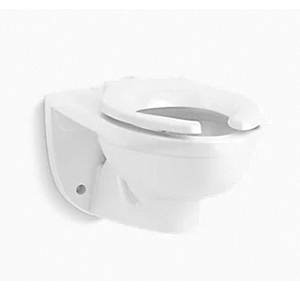

Kingston Vitreous China Wall Elongated Flushometer Bowl, 1.6 gpf, White

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K84325WH
  • MPN: 84325-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bowl Shape      :      Elongated
Finish      :      White
Flush Type      :      Flushometer Valve Siphon
Gallon per Flush      :      1.6 gpf
Item Name      :      Flushometer Bowl
Material      :      Vitreous China
Mounting      :      Wall
Seat Included      :      Yes
Series      :      Kingston
Trapway Size      :      2-1/8 in

A redesign of the Kingston bowl, the Kingston Ultra is an all-purpose flushometer bowl with robust flushing capability. The redesign replaces the flushing engine with the Ultra platform, allowing this bowl to operate at 1.1 - 1.6 gpf. This platform delivers strong performance even at lower than anticipated incoming water pressure or flow. This redesign also introduces a more contemporary aesthetic to complement any decor. The toilet's footprint is designed to cover the current Kingston footprint and all major wall-mounted toilets on the market.

  • Elongated bowl
  • Siphon jet
  • 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf) or 1.6 gpf (6.0 lpf) depending on flushometer specified
  • 11 in (279 mm) x 8-1/4 in (210 mm) water surface
  • Improved flush for toilet seat cover removal
  • Re-engineered for strong flush performance in buildings with lower water pressure or flow
  • New cast-on putty plate resists breakage
  • New design eliminates gas leaks, splashing and paper shredding
  • 1-year limited

Standards/Certifications: ADA compliant, ASME A112.19.2, CSA B45.1, CSA B651, EPA WaterSense certified, ICC/ANSI A117.1
