Victaulic S000760159

FireLock Painted Aluminum, Stainless Steel Water Motor Alarm, 9-19/100 in L x 9-1/50 in H

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI760
  • MPN: S000760159
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      9-19/100 in L x 9-1/50 in H
Finish      :      Painted
Item Name      :      Water Motor Alarm
Material      :      Aluminum, Stainless Steel
Series      :      760
Sub Brand      :      FireLock

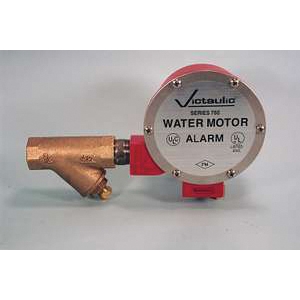

The series 760 FireLock water motor alarm is a mechanical, water-powered device signaling the flow of water in an automatic sprinkler system. The unit is usually installed on a wall with the motor inside the building and the gong outside for maximum audibility. A 100 mesh strainer with 3/4 in NPT threaded end connection is provided for compliance with NFPA 13 requirements. Unless otherwise ordered, the wall setup will be furnished. This will fit wall thicknesses from 2 - 13 in. If thicker, specify at the time of order. A riser mounting kit is available that will fit pipe sizes from 2-1/2 - 8 in inclusive, in vertical or horizontal position. The water motor gong and mechanism are made of aluminum, stainless steel and other non-corrosive materials to prevent rust and staining. Red enamel is standard finish for the gong shell.

  • Mechanical, water-powered device signaling the flow of water in an automatic sprinkler system
  • For wall thicknesses 2 -13 in
  • Red enamel is standard finish for the gong shell

Standards/Certifications: cULus, UL listed, CE 0786 certified, FM approved
