Victaulic A3F3BCQ003
Send Print
  1. pin-int

Victaulic A3F3BCQ003

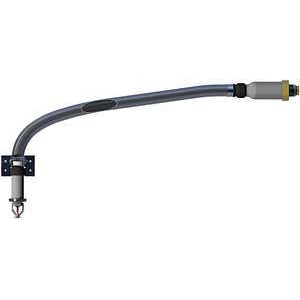

VicFlex Style VS1 Dry Sprinkler Head, 1 in, Chrome

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: A3F3BCQ4NX38012
  • MPN: A3F3BCQ003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      38 in L x 2-1/5 in Dia
Finish      :      Chrome
Item Name      :      Dry Sprinkler Head
Nominal Size      :      1 in
Pressure Rating      :      175 psi
Series      :      Style VS1
Sub Brand      :      VicFlex
Temperature Rating      :      155 deg F
  • Confidence: Meets NFPA 13 installation requirements
  • Speed eliminate custom field measurements with the convenience of standard stock
  • Performance three convenient lengths and tight bend radius means aesthetically preferred pendent installations are a reality
  • Sprinkler configurations flat-plate concealed pendent, recessed pendent, Sleeve and skirt pendent, recessed sidewall, sleeve and skirt sidewall

Standards/Certifications: cULus listed

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS32076_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS32076_Spec.pdf
