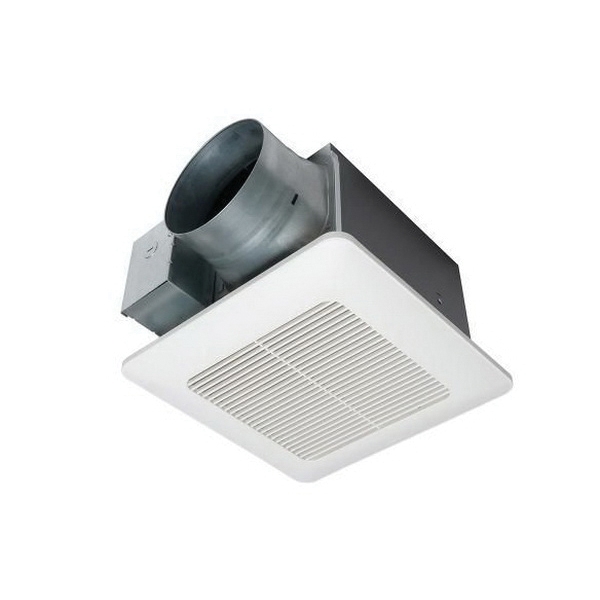

Panasonic FV-1115VQ1

WhisperCeiling DC, SmartFlow 26 ga Zinc-Aluminum-Magnesium Ventilation Fan, 6 in, 120 V, 110/130/150 cfm

  • Manufacturers: Panasonic Corporation
  • Brand Name: Panasonic
  • PN: FV-1115VQ1
  • MPN: FV-1115VQ1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.31 A
Dimension      :      10-1/4 in L x 10-1/4 in W x 7-3/8 in H
Flow Rate      :      110/130/150 cfm
Frequency Rating      :      60 Hz
Grille Size      :      13 in L x 13 in W
Housing Material      :      26 ga Zinc-Aluminum-Magnesium
Item Name      :      Ventilation Fan
Motor Type      :      ECM
Mounting      :      Ceiling
Power Rating      :      6.8 W at 110 cfm, 9 W at 130 cfm, 11.8 W at 150 cfm
RPM      :      636 rpm at 50 cfm, 671 rpm at 80 cfm, 698 rpm at 110 cfm
Size      :      6 in
Sones      :      Less Than 0.3 sones at 110/130/150 cfm
Sub Brand      :      WhisperCeiling DC, SmartFlow
Voltage Rating      :      120 V

WhisperCeiling DC precision spot ventilation fan with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM motor with SmartFlow technology and a Flex-Z fast installation bracket. Can be used to comply with the latest codes and standards.

  • Revolutionary ECM motor with SmartFlow technology for optimum CFM output
  • Pick-A-Flow speed selector - 1 fan
  • Flex-Z fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
  • Lighted models incorporate one long-life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination
  • Elegant grille design compliments the aesthetics of any bathroom
  • ECM motor: 6-years from original purchase date
  • All parts 3-years from original purchase date

Standards/Certifications: Energy Star certified, HVI, cULus listed, California Title 24 compliant, ISO 9001 standard, Washington VIAQ code
