Panasonic FV-0511VHL1
Send Print
  1. pin-int

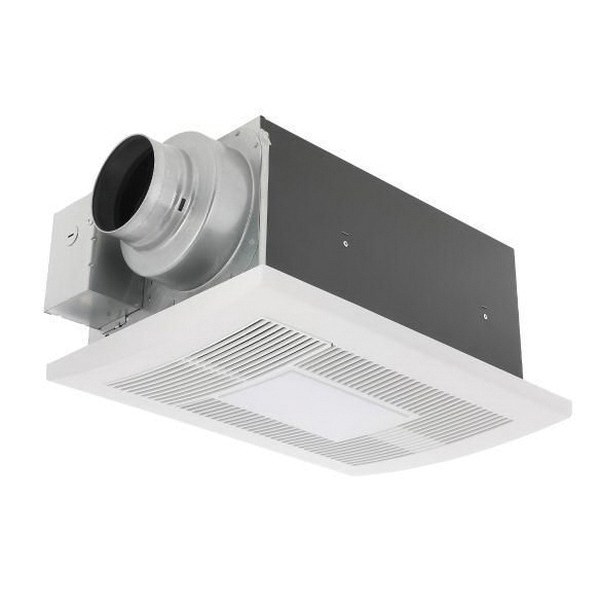

Panasonic FV-0511VHL1

WhisperWarm DC 26 ga Zinc-Aluminum-Magnesium Ventilation Fan with Heater and Light, 654/745/885 rpm, 50/80/110 cfm

  • Manufacturers: Panasonic Corporation
  • Brand Name: Panasonic
  • PN: FV-0511VHL1
  • MPN: FV-0511VHL1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.5 A
Dimension      :      16 in L x 10-1/4 in W x 7-1/2 in H
Flow Rate      :      50/80/110 cfm
Frequency Rating      :      60 Hz
Grille Size      :      18-1/4 in L x 13-1/4 in W
Housing Material      :      26 ga Zinc-Aluminum-Magnesium
Item Name      :      Ventilation Fan with Heater and Light
Motor Type      :      ECM
Mounting      :      Ceiling
Power Rating      :      4.7 W at 50 cfm, 7.4 W at 80 cfm, 12.4 W at 110 cfm
RPM      :      654 rpm at 50 cfm, 745 rpm at 80 cfm, 885 rpm at 110 cfm
Size      :      4 or 6 in
Sones      :      Less Than 0.3 sones at 50/80 cfm, 0.7 sones at 110 cfm
Sub Brand      :      WhisperWarm DC
Voltage Rating      :      120 V

WhisperWarm DC ceiling mount fan/heater/light provides easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and healthier environment, with enhanced heating technology that quickly heats up any bathroom. Indoor comfortability is becoming more important in today's environment and WhisperWarm DC is the solution.

  • Precision spot ventilation fan/heater incorporates a powerful ECM motor with Smartflow technology for optimum CFM output
  • 1600 W positive temperature coefficient (PTC) heater provides instant warm up for safe and reliable operation, combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance
  • Pick-A-Flow (50-80-110 CFM) combined with SmartFlow technology simplifies the selection process
  • Light option includes a 10 W dimmable LED chip panel with <1 W LED night light
  • Flex-Z fast bracket provides flexible, fast and easy installation, even from below the ceiling
  • 6-years ECM motor, 5-years LED, 3 years all other parts

Standards/Certifications: Energy Star certified, HVI, cULus listed, California Title 24 compliant, ISO 9001 standard, Washington VIAQ code
