Supco IDVM550

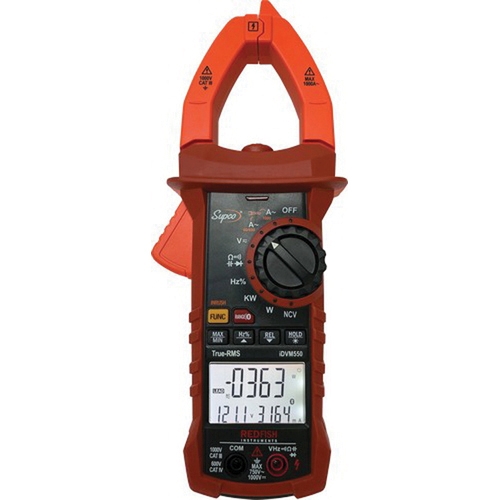

TechLink Auto Ranging Wireless LCD Backlit Digital Clamp-On Meter, 750 VAC, 1000 VDC, 1000 A

  • Manufacturers: Sealed Unit Parts
  • Brand Name: Supco
  • PN: IDVM550
  • MPN: IDVM550
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
AC Current Accuracy      :      Plus/Minus 2% Plus 8 Digits
AC Response      :      True RMS
Amperage Rating      :      1000 A
Display Type      :      LCD Backlit
Frequency Rating      :      10 Hz - 10 MHz
Includes      :      Test Leads, Type K Thermocouple, 9V Battery
Item Name      :      Digital Clamp-On Meter
Jaw Capacity      :      1-1/2 in
Operating Temperature      :      32 - 122 deg F
Power Supply      :      Battery Powered
Resistance      :      60 MOhm
Safety Rating      :      CAT III 1000V
Sub Brand      :      TechLink
Type      :      Auto Ranging, Wireless
Voltage Rating      :      750 VAC, 1000 VDC

Determine system efficiency with our new professional grade Clamp Meter by measuring AC Volts, AC Amps, system kW and the power factor. Use App-captured data on the free Supco TechLink App to discuss system operating costs on jobs.

  • Bluetooth connectivity via BTLE(v4.0)
  • Auto/manual ranging
  • Low battery indicator
  • Hold function
  • Relative (zero) function
  • Min/Max function
  • Auto power off
  • Integrated work light and lead holder

Standards/Certifications: CE certified, ETL certified
