C-Aire S1300V-HD1-230S

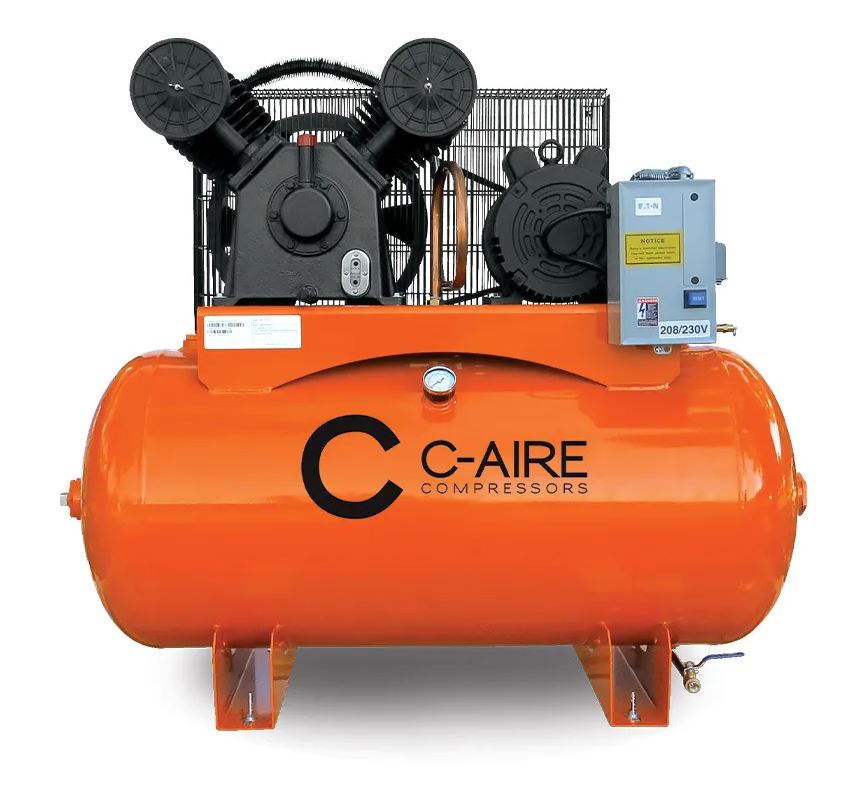

5 Hp S1300 Oil-lubricated Tank Mount Fire Protection Compressor

  • Manufacturers: C-Aire Compressors
  • Brand Name: C-Aire
  • PN: S1300V-HD1-230S
  • MPN: S1300V-HD1-230S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
CFM Rating      :      17.91 psi @ 10 psi
HP Rating      :      5 hp
Item Name      :      Air Compressor
Phase      :      1 or 3 ph
Voltage Rating      :      208/230 or 460 V
  • 5 Horse Power
  • 60 Gallons
  • 17.91 CFM @ 10 PSI
  • Single or Three Phase
  • 208/230 or 460 Volts
  • Horizontal Tank or Vertical Tank
  • Standard pressure (40 psi): Fills a 1,394-gallon dry pipe system in 30 minutes
  • Low pressure (18 psi): Fills a 3,308-gallon dry pipe system in 30 minutes
  • Pre-action (10 psi): Fills a 6,356-gallon dry pipe system in 30 minutes
  • Standard 70-100 PSI / Special Order 30-40 PSI
  • 1/2" NPT Outlet
  • 50" x 24" x 43" Horizontal / 33" x 23" x 70" Vertical (L x D x H)
  • 490 lbs Shipping Weight
  • Conforms to UL Standard 1450 and Certified to CSA Standard C22.2 No. 68-92
