C-Aire S500V-HD1-115
Send Print
  1. pin-int

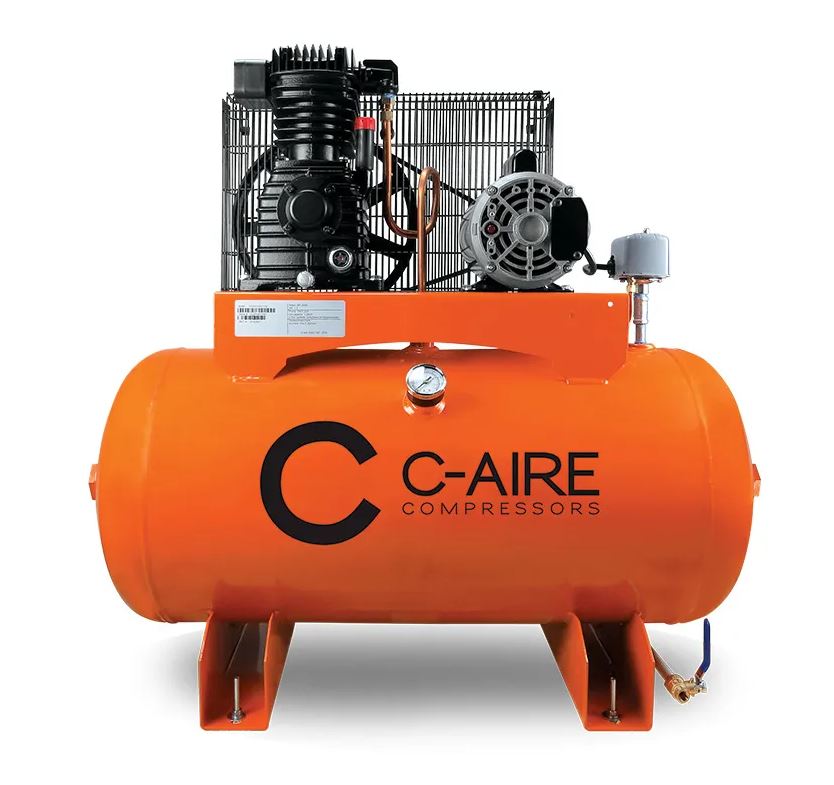

C-Aire S500V-HD1-115

1.5 Hp S500 Oil-lubricated Tank Mount Fire Protection Compressor

  • Manufacturers: C-Aire Compressors
  • Brand Name: C-Aire
  • PN: S500V-HD1-115
  • MPN: S500V-HD1-115
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
CFM Rating      :      7.6 psi @ 10 psi
HP Rating      :      1.5 hp
Item Name      :      Air Compressor
Phase      :      1 or 3 ph
Voltage Rating      :      115 or 208/230 or 460 V
  • 1.5 Horse Power
  • 30 Gallons
  • 7.6 CFM @ 10 PSI
  • Single or Three Phase
  • 115 or 208/230 or 460 Volts
  • Horizontal Tank or Vertical Tank
  • Standard pressure (40 psi): Fills a 565-gallon dry pipe system in 30 minutes
  • Low pressure (18 psi): Fills a 1,368-gallon dry pipe system in 30 minutes
  • Pre-action (10 psi): Fills a 2,586-gallon dry pipe system in 30 minutes
  • Standard 70-PSI / Special Order 30-40 PSI
  • 1/2" NPT Outlet
  • 41" x 17" x 35" Horizontal / 25" x 17" x 55" Vertical (L x D x H)
  • 235 lbs Shipping Weight
  • ETL Listed for Fire Protection (UL Standard 1450 & CSA Standard C22.2 No. 68)
