PSC Approved Manufacturer 0650374

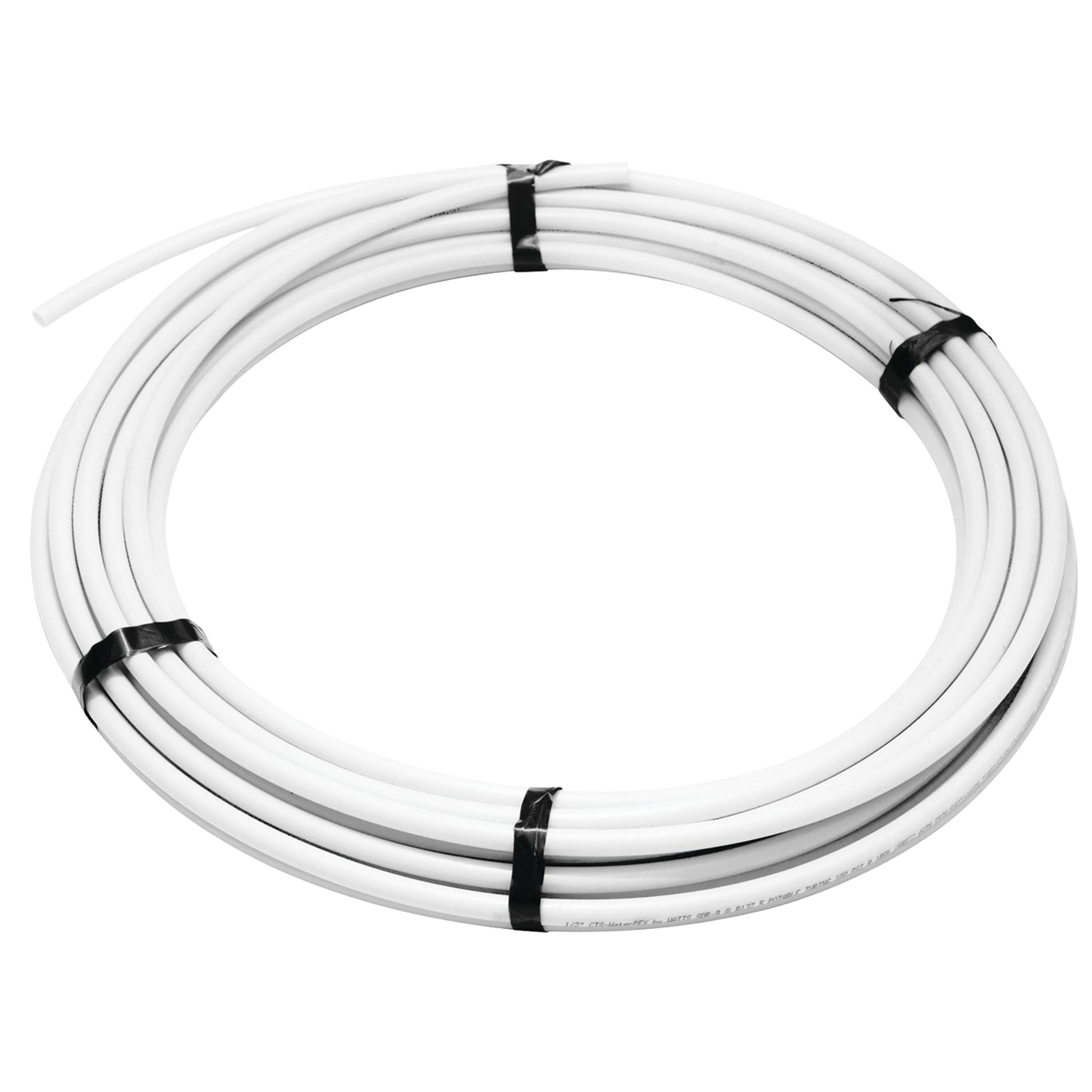

White Cross-Linked Polyethylene SDR 9 PEX Tubing, 1/8 in x 100 ft, Coiled, Lead-Free

  • Manufacturers: PSC Approved Manufacturer
  • Brand Name: PSC Approved Manufacturer
  • PN: 0650374
  • MPN: 0650374
  • UPC: 098268337280
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bend Radius      :      1-1/2 in
Color      :      White
Connection Type      :      PEX
Inside Diameter      :      1/8 in
Item Name      :      Tubing
Length      :      100 ft
Material Specifications      :      ASTM F876, ASTM F877, ASTM F1807, ASTM F2159, ASTM F2434
Material      :      Cross-Linked Polyethylene
Model      :      WPTC02-100W
Outside Diameter      :      1/4 in
Packaging Type      :      Coiled
Pressure Rating      :      100 psi
Series      :      WPTC-W
Sub Brand      :      WaterPEX
Temperature Rating      :      200 deg F
Type      :      SDR 9
Wall Thickness      :      1/16 in

WaterPEX tubing is a cross-linked polyethylene tubing used for potable water applications. WaterPEX is manufactured without an oxygen barrier.

  • Lead-free
  • It is tough, flexible and corrosion-proof and is much lighter than copper
  • Packaged in heavy-duty, UV protective plastic sheathe
  • Color coded packaging
  • Certified to PEX 5306 by NSF for use in continuous hot water recirculation systems and up to 6-months of sunlight exposure (ASTM F2030, ASTM F2657)
  • ASTM E84 and CAN/uLC S102.2 smoke developed and flame spread classification
  • Fire-resistance per CAN/uLC S101 and ASTM E119-08

Standards/Certifications: NSF 14 and 61, CSA B137.5 certified, NSF-PW and CL-R, ICCES standard, CAN/ULC S102.2 and CAN/ULC S101 certified, UPC compliant

Applications: For potable water applications
