Watts 0650833

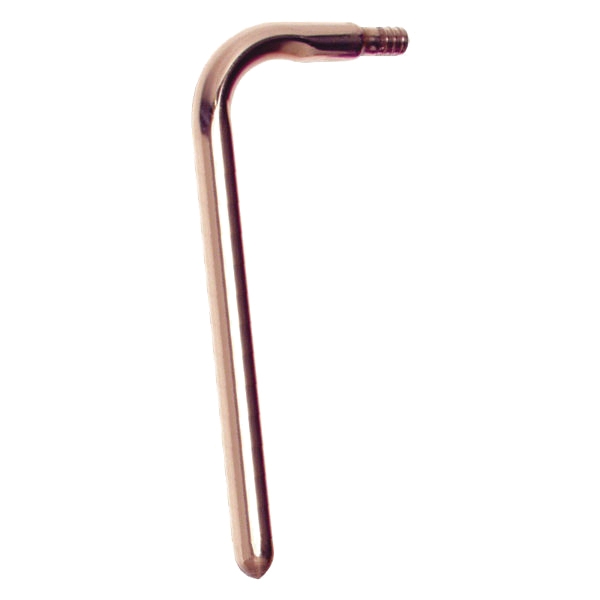

WaterPEX WPSB-B8 Copper 90 deg Stub Out Elbow, 1/2 in, Barb x Plain, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: WPSB-B8
  • MPN: 0650833
  • UPC: 098268316674
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1/2 in
Connection Type      :      Barb x Plain
Height      :      3-1/2 in
Item Name      :      Stub Out Elbow
Length      :      8 in
Material Specifications      :      ASTM F1807, ASTM B68
Material      :      Copper
Model      :      WPSB-B8
Pressure Rating      :      100 psi
Series      :      WPSB
Sub Brand      :      WaterPEX
Temperature Rating      :      180 deg F

WaterPEX copper stub-out elbows are designed to provide a rigid copper pipe transition from WaterPEX pipe to a fixture stop valve. Copper stub-outs are manufactured from seamless copper tubing with a machined ASTM F1807 PEX barbed inlet and spin sealed outlet, with or without eared mounting straps. Copper stub-outs are designed to allow for initial system pressure testing prior to fixture installation and then cut to length for desired wall protrusion and stop valve installation.

Standards/Certifications: NSF 14 and 16, CSA B137.5 certified

Applications: For use with SDR-9 PEX pipe
