Watts 0123006

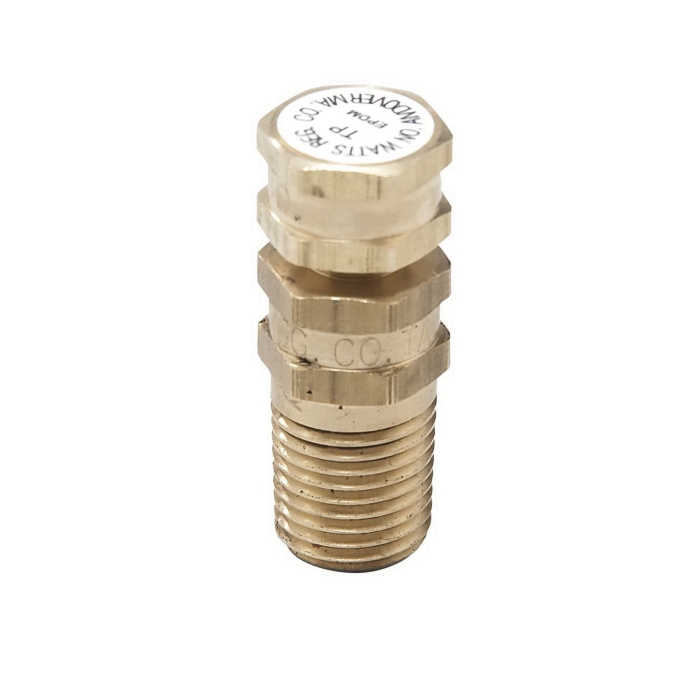

LFTP-E White Brass Lead-Free Temperature or Pressure Test Plug, 1/2 in MNPT

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0123006
  • MPN: 0123006
  • UPC: 098268650372
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      MNPT
Diameter      :      1/2 in
Finish      :      White
Fits Pipe Size      :      1/2 in
Item Name      :      Temperature or Pressure Test Plug
Length      :      1-1/2 in
Material      :      Brass
Model      :      LFTP-E
Pressure Rating      :      500 psi
Temperature Rating      :      -40 to 275 deg F

This 1/2 in lead-free temperature and pressure test plug is color-coded white and is made from EPDM for hot and cold water service with a temperature range of negative 40 to 275 deg F. The plug allows for quick and efficient temporary insertion of a recorder or gauge for temperature or pressure readings eliminating the need to leave them in line. The system does not need to be shut down for temperature and pressure checks.

  • Allows quick and efficient temperature or pressure readings
  • Eliminates leaving expensive gauges or temperature recorders in-line
  • Economical means of balancing heating and air conditioning systems
  • Eliminates shutting down system for temperature and pressure checks
  • Female x female connections
  • Lead-free

Applications: For residential and commercial
