Watts 0887170
Send Print
  1. pin-int

Watts 0887170

RK 188/288/388-T Total Repair Kit for 1/4 - 3/8 in 188, LF288, 288, LF388, 388 Anti-Siphon Vacuum Breaker

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0887170
  • MPN: 0887170
  • UPC: 098268351132
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability

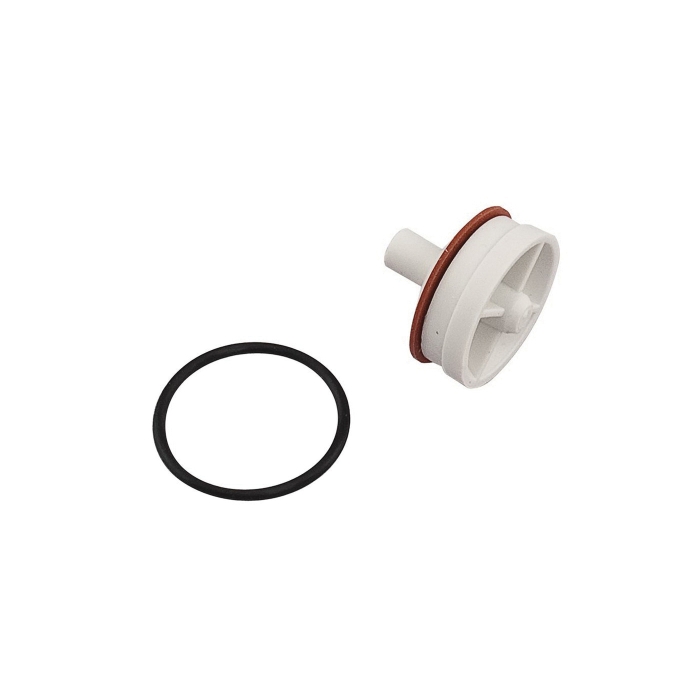

Includes      :      Disc Assembly (Includes Disc and Disc Float) and Bonnet O-Ring
Item Name      :      Total Repair Kit
Model      :      RK 188/288/388-T
Pressure Rating      :      125 psi

This 1/4 - 3/8 in anti-siphon vacuum breaker hot or cold water repair kit prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of a disk and disc float, a bonnet and O-ring. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum pressure is 125 psi.

  • Lead-free
  • No special tools required for changing parts
  • All parts are made of high quality materials
  • Factory replacement kit
  • Hot or cold water use

Applications: For 1/4 - 3/8 in 188, LF288, 288, LF388, 388 anti-siphon vacuum breaker

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1336_Instal.pdf
