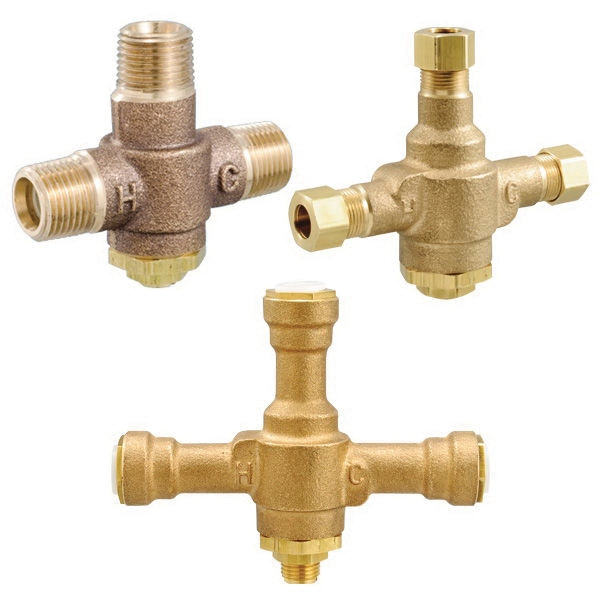

Designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. Rugged construction features solid lead-free brass body and corrosion-resistant, internal components ensuring years of dependable, trouble-free service. Temperature adjustment stem is simple to adjust and has a locking nut to prevent tampering.

• Adjustable temperature selection with locknut to prevent tampering
• Advanced thermal actuator improves performance at low-flow
• Temperature controls to ASSE 1070, down to 0.5 gpm
• Lead-free brass body for durability and to comply with lead-free installation requirements
• Corrosion-resistant internal components for extended life
• Integral checks and screen prevent cross-flow and filter out debris
• Factory set to 105 deg F
• 120 - 180 deg F hot water inlet temperature
• 40 - 80 deg F cold water inlet temperature

Standards/Certifications: ASSE 1070, CSA B125.3, cUPC, IAPMO listed

• Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9124_Instal.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9124_Spec.pdf
