Watts 0653102

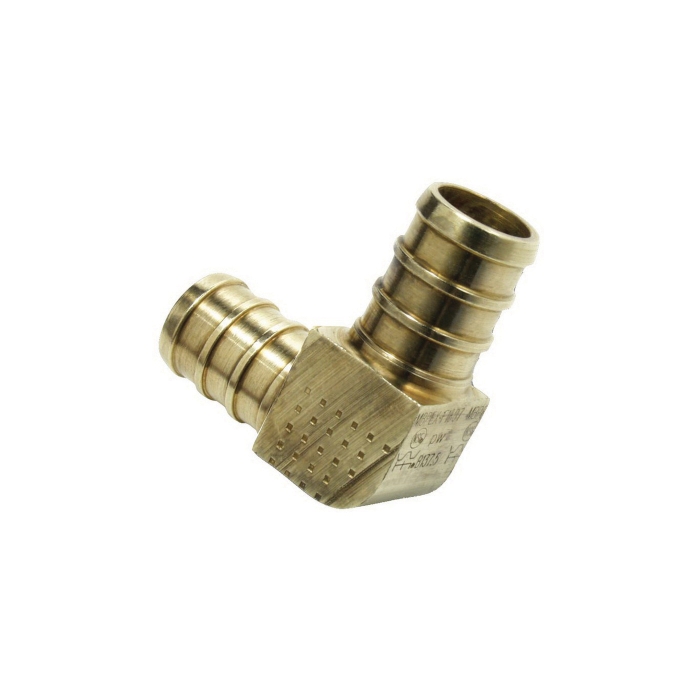

CrimpRing LFWP19B-1208PB Brass 90 deg Reducing Elbow, 1/2 x 3/4 in, Crimped, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: LFWP19B-1208PB
  • MPN: 0653102
  • UPC: 098268442144
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1/2 x 3/4 in
Connection Type      :      Crimped
Finish      :      Brass
Item Name      :      Reducing Elbow
Material Specifications      :      ASTM F1807, ASTM F877
Material      :      Brass
Model      :      LFWP19B-1208PB
Pressure Rating      :      160 psi
Series      :      LFWP19B
Sub Brand      :      CrimpRing
Temperature Rating      :      30 - 200 deg F

This lead-free Crimpring elbow is used to make a 90 deg transition between potable or radiant heating PEX tubing. This 1/2 in crimp x 3/4 in crimp elbow is made of lead-free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Standards/Certifications: NSF 14 and 61, NSF-PW certified, CSA B137.5, UPC listed

Applications: For 90 degree change between SDR-9 PEX pipe
