Watts 0114039

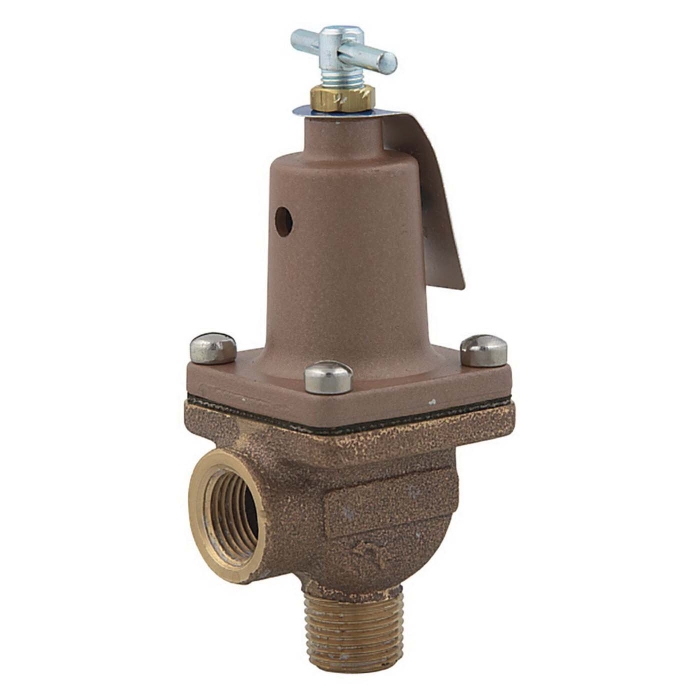

BP30 Bronze Diaphragm Operated By-Pass Control Relief Valve, 1/2 in, MNPT x FNPT, 10 - 50 psi

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0114039
  • MPN: 0114039
  • UPC: 098268009347
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      MNPT x FNPT
Dimension      :      2-1/4 in L x 5-3/4 in W
Disc Material      :      Buna-N
Item Name      :      By-Pass Control Relief Valve
Material      :      Bronze
Operator Type      :      Tee Handle
Pressure Rating      :      10 - 50 psi
Series      :      BP30
Temperature Rating      :      180 deg F
Type      :      Diaphragm Operated

Series BP30 diaphragm-operated by-pass relief valves regulate liquid pressure as supplied by a positive pressure pump. These relief valves protect equipment by opening at desired setting and allowing excess volume to be bypassed back to source. They feature bronze body construction, sensitive rubber diaphragms, and Buna-N discs. The tee handle facilitates pressure change. The spring and adjustment handle are free from contact with liquid elements being controlled.

  • Spring loaded
  • Soft seated
  • Automatic reseating
  • Spring and adjustment handle separated from liquid elements

Applications: For commercial and residential applications
