Watts 0556000

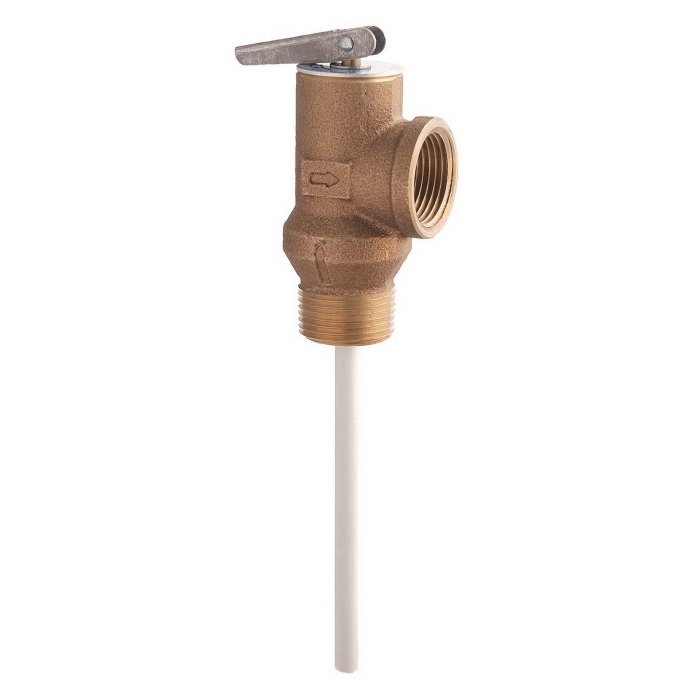

LF100XL Copper Silicon Alloy Temperature and Pressure Relief Valve, 3/4 in, MNPT x FNPT, 150 psi, 210 deg F, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0556000
  • MPN: 0556000
  • UPC: 098268432350
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      105000 Btu/hr CSA
Connection Size      :      3/4 in
Connection Type      :      MNPT x FNPT
Dimension      :      3-1/2 in H
Item Name      :      Temperature and Pressure Relief Valve
Material      :      Copper Silicon Alloy
Operator Type      :      Test Lever Handle
Pressure Rating      :      150 psi
Series      :      LF100XL
Temperature Rating      :      210 deg F

The combined 2 in 1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105000 Btu/hr. Series 100XL furnished with test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. Temperature sensing element must be immersed in the water within the top 6 in (152mm) of the tank.

  • Lead-free
  • 4 in thermostat probe length
  • Features a unique thermostat with special thermo-bonded coating
  • Thermostat is accurate and proven
  • Stainless steel spring
  • Copper thermostat

Standards/Certifications: ANSI Z21.22, CSA certified

Applications: For water heater applications
