Watts 0556002

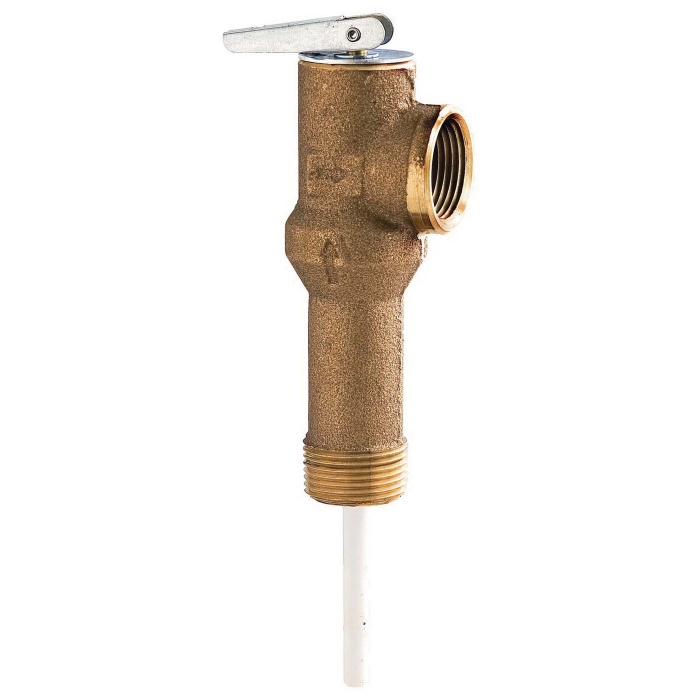

LLLF100XL Copper Silicon Alloy Temperature and Pressure Relief Valve, 3/4 in, MNPT x FNPT, 150 psi, 210 deg F, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0556002
  • MPN: 0556002
  • UPC: 098268432374
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      105000 Btu/hr CSA
Connection Size      :      3/4 in
Connection Type      :      MNPT x FNPT
Dimension      :      5-1/4 in H x 1-7/8 in W
Item Name      :      Temperature and Pressure Relief Valve
Material      :      Copper Silicon Alloy
Operator Type      :      Test Lever Handle
Pressure Rating      :      150 psi
Series      :      LLLF100XL
Temperature Rating      :      210 deg F

The combined 2 in 1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. Watts Self-closing combination temperature and pressure relief valves are design certified, rated and listed by CSA to the requirements of ANSI Z21.22, and by the National Board to the requirements of ASME Section IV. They provide fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105000 Btu/hr. The temperature sensing element must be immersed in the water within the top 6 in of the tank.

  • Lead-free
  • 2 in thermostat probe length
  • Extended shank for thick tank insulation up to 2-1/2 in
  • Extension thermostat with thermo-bonded coating
  • Stainless steel spring
  • Copper thermostat

Standards/Certifications: ASME section IV, ANSI Z21.22, CSA certified

Applications: For water heater applications
