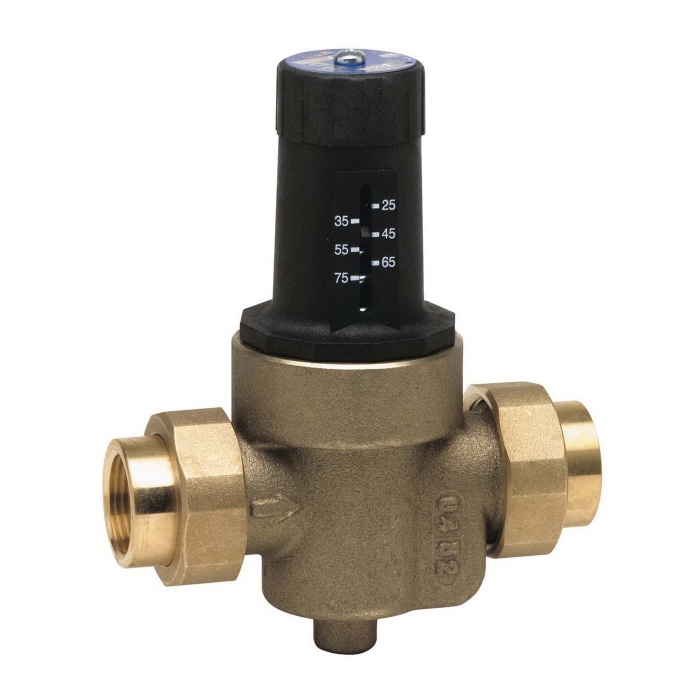

Series N45B-EZ water pressure reducing valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 400 psi and may be adjusted from 25 - 75 psi. The standard setting is 50 psi. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.

• Lead-free
• Factory calibrated outlet pressure adjustment
• Easily adjustable pressure setting
• Integral stainless steel strainer
• Thermoplastic cage and seat
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• Sealed spring cage for accessible outdoor or pit installations
• Thermoplastic cage, reinforced EPDM diaphragm, elastomer valve disc

Standards/Certifications: UPC, IAPMO listed, CSA, ASSE, NSF/ANSI 61-G certified

Applications: For residential and commercial applications

• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS042_Spec.pdf
