Watts 0342692

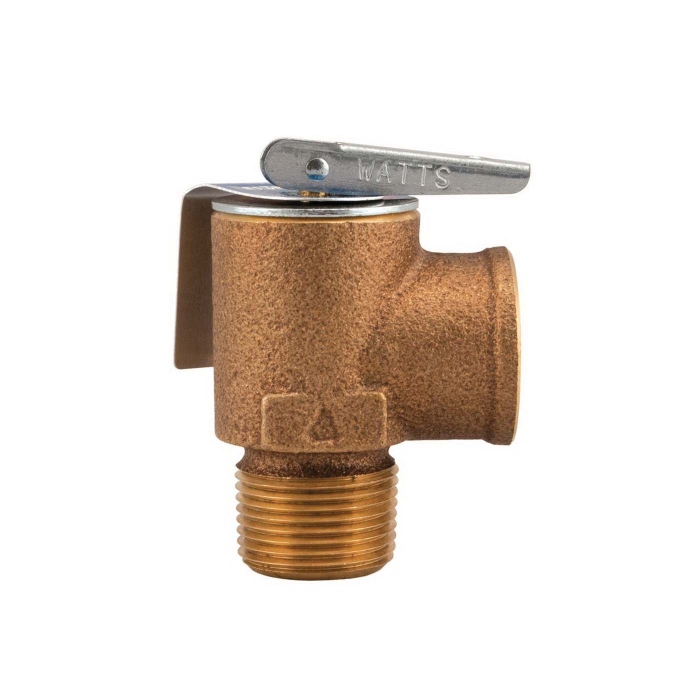

335 Bronze Boiler Pressure Relief Valve, 3/4 in, MNPT x FNPT, 30 psi

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0342692
  • MPN: 0342692
  • UPC: 098268784206
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      510000 Btu/hr
Connection Size      :      3/4 in
Connection Type      :      MNPT x FNPT
Dimension      :      2-3/4 in H
Disc Material      :      Silicone
Item Name      :      Boiler Pressure Relief Valve
Material      :      Bronze
Operator Type      :      Lever Handle
Pressure Rating      :      30 psi
Seat Material      :      Bronze
Series      :      335
Temperature Rating      :      250 deg F

Series 335 ASME rated boiler pressure relief valves were developed to fill the OEM need of the hydronic industry for a smaller valve on popular size boilers up to 510000 Btu at 30 psi. The compact design, all bronze construction and modern appearance make them an ideal choice for a wide variety of smaller size OEM boilers.

  • Stainless steel spring
  • High heat resisting silicone disc
  • Positive shut-off
  • Seat located above drain

Standards/Certifications: ISO 9001-2008 standard, ASME section IV, NB certified

Applications: For commercial and residential applications
