Watts F358553

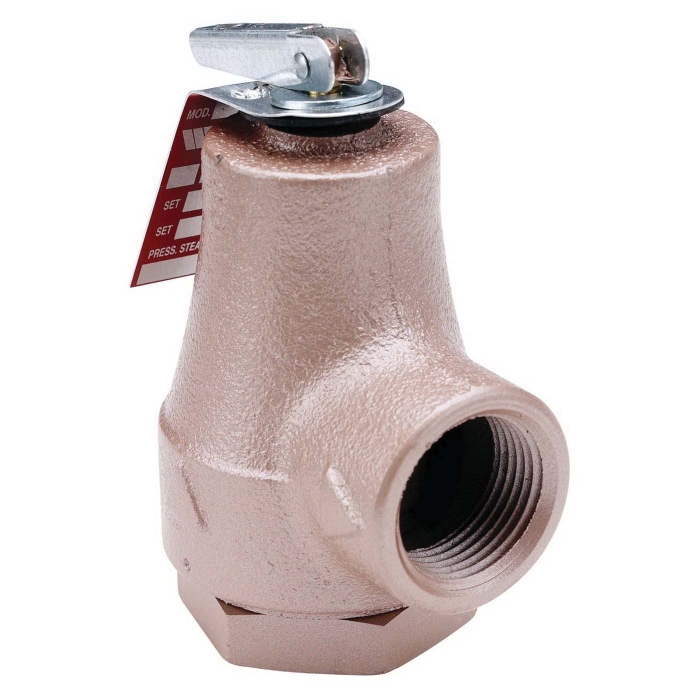

374A Brass Water Pressure Relief Valve, 3/4 in, FNPT, 30 psi

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: F358553
  • MPN: F358553
  • UPC: 098268018042
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      550000 Btu/hr
Connection Size      :      3/4 in
Connection Type      :      FNPT
Dimension      :      3-1/2 in H x 2-1/2 in L
Item Name      :      Water Pressure Relief Valve
Material      :      Brass
Operator Type      :      Lever Handle
Pressure Rating      :      30 psi
Series      :      374A
Temperature Rating      :      250 deg F

This 3/4 in pressure relief valve is used in hot water boiler applications to protect against excessive pressure on all types of hot water heating boiler equipment. It consists of a iron body with forged bronze inlet, non-metallic disc-to-metal seating and stainless steel spring. This valve resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and should not be used as an operating control. The pressure setting is 30 psi for applications up to 550000 Btu/hr.

  • Iron body with forged bronze inlet
  • Seat located above drain, water can't be trapped and sediment can't foul seat
  • Non-mechanical seat to disc alignment will not stick or freeze

Standards/Certifications: ASME section IV, HV, NB, ISO 9001 standard

Applications: For hot water boiler applications
