Watts 0881376

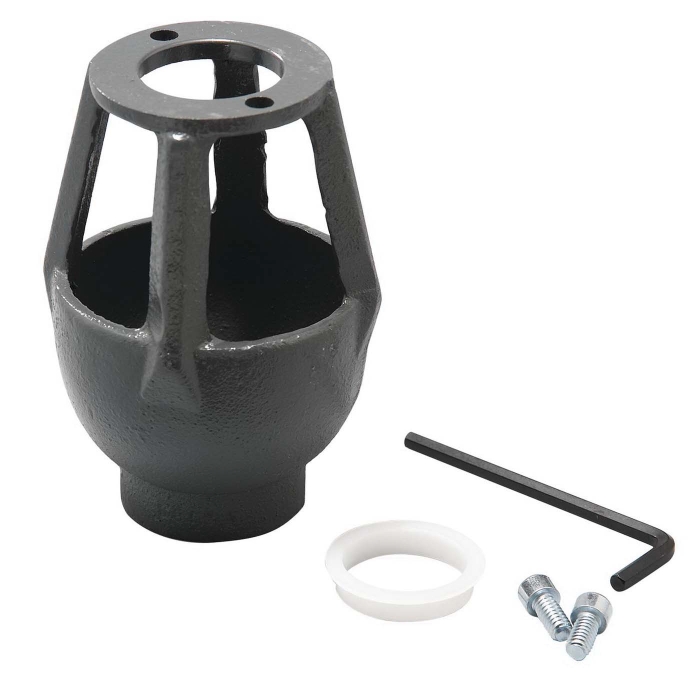

909AGC Cast Iron Air Gap for 3/4 - 1 in 009/909 Reduced Pressure Zone Assemblies

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0881376
  • MPN: 0881376
  • UPC: 098268104950
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FNPT
Dimension      :      3-1/4 in W x 4-7/8 in H
Item Name      :      Air Gap
Material      :      Cast Iron
Series      :      909AGC
Size      :      1 in

This air gap for reduced pressure zone assembly, 3/4 - 1 in series 009 and 909, 1 - 1-1/2 in series 009M2 and 1-1/4 - 2 in series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

  • Diverts nuisance discharge
  • Durable coating
  • Hardware for installation included

Applications: For 3/4 - 1 in 009/909 pressure reduced zone assemblies
