Watts 0881576
Send Print
  1. pin-int

Watts 0881576

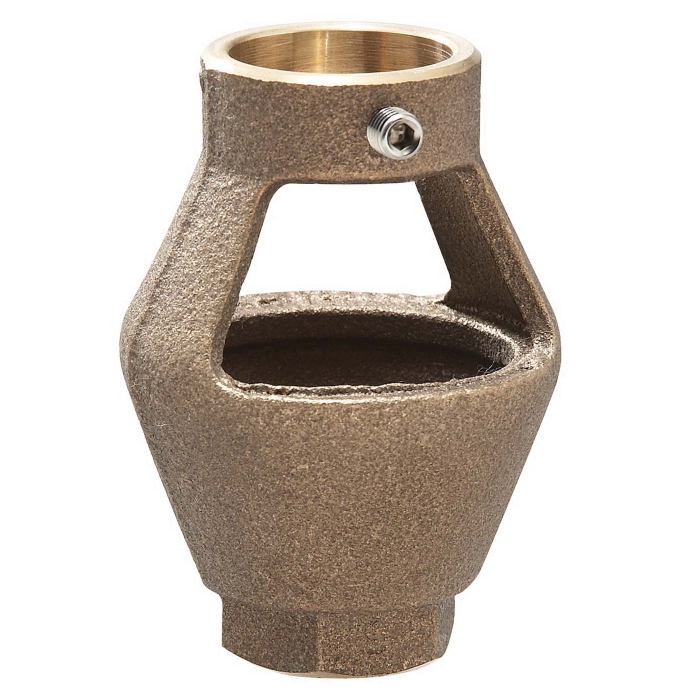

919AGC Bronze Air Gap for 3/4 - 1 in 909 Reduced Pressure Zone Assemblies

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0881576
  • MPN: 0881576
  • UPC: 098268213560
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FNPT
Dimension      :      2-3/8 in W x 3-1/8 in H
Item Name      :      Air Gap
Material      :      Bronze
Series      :      919AGC
Size      :      1/2 in

This air gap is designed for 3/4 - 1 in reduced pressure zone assembly, series 909, and provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. An air gap can be installed vertically or horizontally (vent elbow required for vertical installation).

  • Nuisance discharge
  • Durable coating

Applications: For 3/4 - 1 in 909 pressure reduced zone assemblies
