Watts 0069721

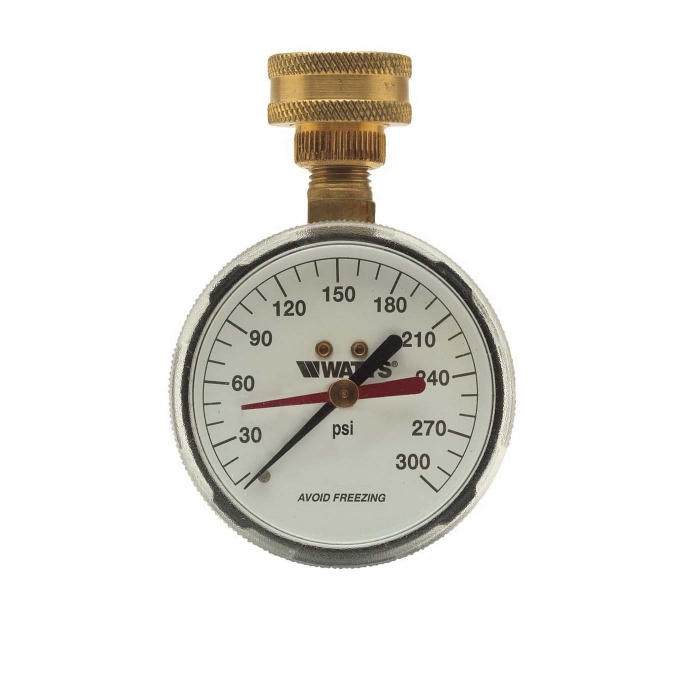

276H300 Black Enamel Steel Water Pressure Test Gauge, 0 - 300 psi

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0069721
  • MPN: 0069721
  • UPC: 098268007947
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Hose Thread
Depth      :      2-1/2 in
Finish      :      Black Enamel
Height      :      4 in
Item Name      :      Water Pressure Test Gauge
Material      :      Steel
Measuring Range      :      0 - 300 psi
Model      :      276H300
Temperature Rating      :      40 - 140 deg F

Series 276H300 Hose connection gauges are used to test water supply pressures within a distribution system. Its red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, Kostil polymer window, 3/4 in H.T. hose connection, and copper alloy bourdon tube sensing element. Accuracy is ASME, Type B. Available in 0 to 300 psi (21 bar) pressure rating scale.

  • Gauge includes copper alloy bourdon tube sensing element and 3/4 in H.T. hose connection, in a handy black enamel steel case
  • Red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges
  • Kostil polymer window
  • Tin alloy welding

Standards/Certifications: ASME B40.100, EN ISO 9001:2008, EN ISO 14001:2004 standard

Applications: For testing water supply pressures within a distribution system
