Watts 0650405

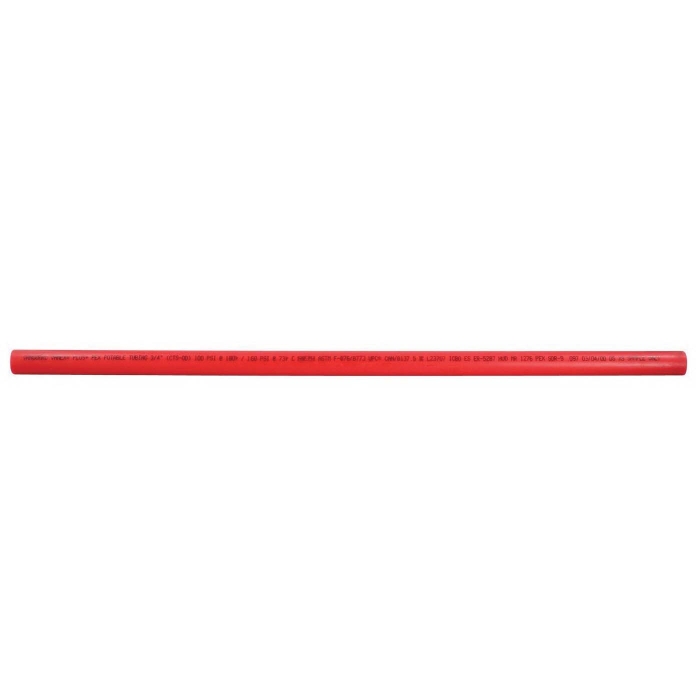

WaterPEX WPTS12-25R Red Cross-Linked Polyethylene Tubing, 3/4 in x 20 ft L, Bundled Sticks, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: WPTS12-25R
  • MPN: 0650405
  • UPC: 982683114712
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bend Radius      :      7 in
Color      :      Red
Connection Type      :      PEX
Inside Diameter      :      3/4 in
Item Name      :      Tubing
Length      :      20 ft
Material Specifications      :      ASTM F876, ASTM F877, ASTM F1807, ASTM F2159, ASTM F2434
Material      :      Cross-Linked Polyethylene
Model      :      WPTS12-25R
Nominal Size      :      3/4 in
Outside Diameter      :      7/8 in
Packaging Type      :      Bundled Sticks
Pressure Rating      :      100 psi
Series      :      WPTS-R
Sub Brand      :      WaterPEX
Temperature Rating      :      200 deg F
Type      :      SDR 9
Wall Thickness      :      5/8 in

This bundle of red WaterPEX 1/2 in pipe is comprised of 50 sticks that are 20 ft in length. WaterPEX tubing is a cross-linked polyethylene tubing used for potable water applications. It is tough, flexible, and corrosion proof, and is much lighter than copper.

  • Lead-free
  • Packaged in heavy-duty, UV-protective plastic sheathe
  • Bundled PEX sticks

Standards/Certifications: NSF 14 and 61, CSA B137.5 certified, NSF-PW and CL-R, ICCES standard, CAN/ULC S102.2 and CAN/ULC S101 certified, UPC compliant

Applications: For potable water applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1144_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1144_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1144_Spec.pdf
