Watts 0792039

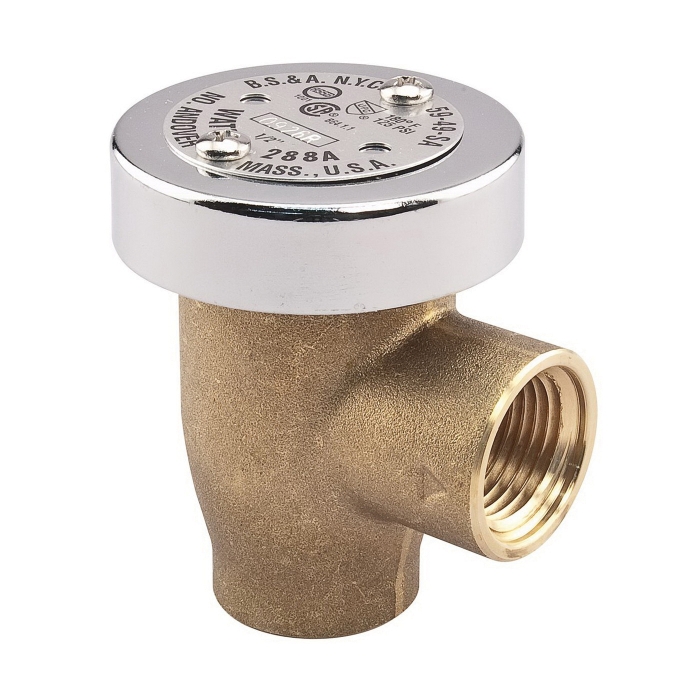

LF288A Brass Vacuum Breaker, 3/4 in, FNPT, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0792039
  • MPN: 0792039
  • UPC: 098268434255
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FNPT
Dimension      :      2-1/4 in W x 3 in H
Disc Material      :      Silicone
Finish      :      Brass
Item Name      :      Vacuum Breaker
Material      :      Brass
Pressure Rating      :      125 psi
Seat Material      :      Silicone
Series      :      LF288A
Temperature Rating      :      33 - 180 deg F

This 3/4 in lead-free anti-siphon vacuum breaker for hot or cold water prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of lead-free construction, chemical-resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard applications such as on laboratory equipment.

  • Lead-free
  • Full size orifice for maximum flow
  • Lightweight disc assembly prevents spilling under all rates of flow
  • Hot or cold water

Standards/Certifications: ASSE 1001, UPC, CSA B64.1.1 certified

Applications: For low flow, non-continuous hot or cold water health hazard applications such as on laboratory equipment

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1211_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1211_Spec.pdf
