Watts 0792087

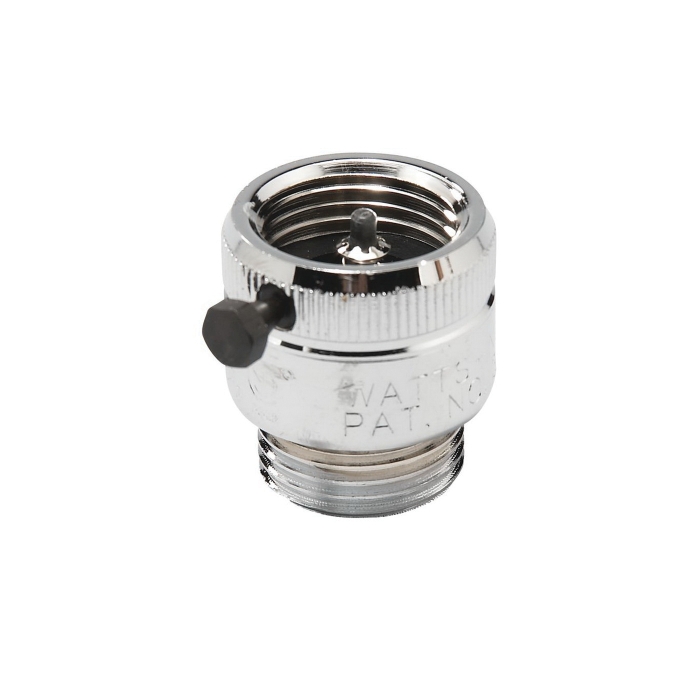

LF8C Brass Vacuum Breaker, 3/4 in, FHT x MHT, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0792087
  • MPN: 0792087
  • UPC: 098268434743
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FHT x MHT
Dimension      :      1-3/8 in W x 1-1/2 in H
Disc Material      :      Rubber
Finish      :      Chrome
Item Name      :      Vacuum Breaker
Material      :      Brass
Model      :      LF8C
Pressure Rating      :      125 psi
Series      :      LF8
Temperature Rating      :      33 - 180 deg F

This 3/4 in lead-free hose connection vacuum breaker permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water into the potable water supply due to backsiphonage. It consists of a lead-free body construction, stainless steel working parts, and a rubber diaphragm and disc. It is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses. Check with local inspection authorities for installation requirements. Maximum pressure is 125 psi (8.6 bar).

  • Lead-free
  • No special tools required for servicing
  • Durable rubber diaphragm and disc for consistent positive seating
  • Copper silicon alloy body
  • Stainless steel working parts for longevity
  • Allen set screw

Standards/Certifications: ANSI/NSF 372, ASSE 1001, UPC, IAPMO listed, CSA B64.1.1 certified

Applications: For health hazard applications
