Watts 0792093

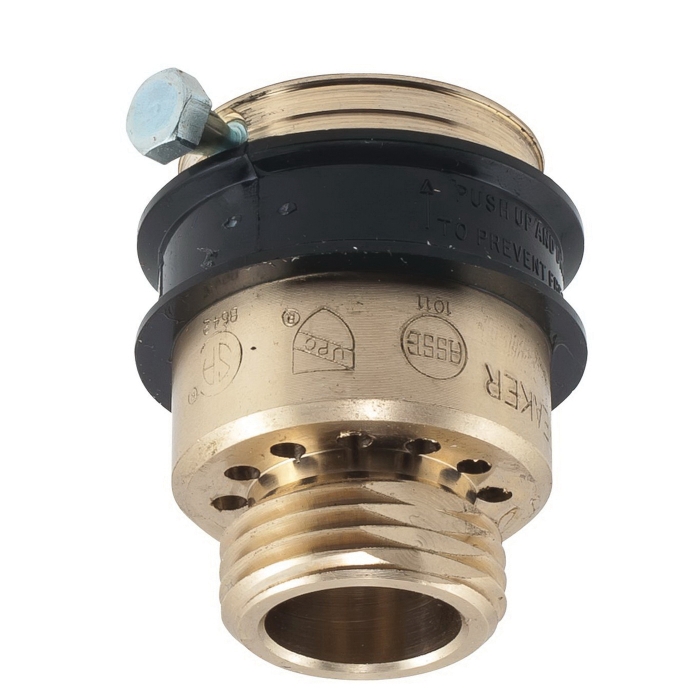

LFNF8 Brass Vacuum Breaker, 3/4 in, FHT x MHT, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0792093
  • MPN: 0792093
  • UPC: 098268434804
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FHT x MHT
Dimension      :      1-1/2 in W x 2 in H
Disc Material      :      Rubber
Finish      :      Brass
Item Name      :      Vacuum Breaker
Material      :      Brass
Model      :      LFNF8
Pressure Rating      :      125 psi
Series      :      NF8
Temperature Rating      :      33 - 180 deg F

This 3/4 in hose bibb vacuum breaker is designed specifically for wall and yard hydrants to prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of lead-free body construction, stainless steel working parts, a rubber diaphragm and disc, and a draining stem. It permits manual draining for freezing conditions. The maximum pressure is 125 psi (8.6 bar).

  • Lead-free
  • No special tools required for servicing
  • Durable rubber diaphragm and disc for consistent positive seating
  • Manual drain
  • Stainless steel working parts for longevity

Standards/Certifications: ANSI/NSF 372, ASSE 1011, UPC, IAPMO listed, CSA B64.2 certified

Applications: For health hazard applications

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1223_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1223_Spec.pdf
