Watts 0067450

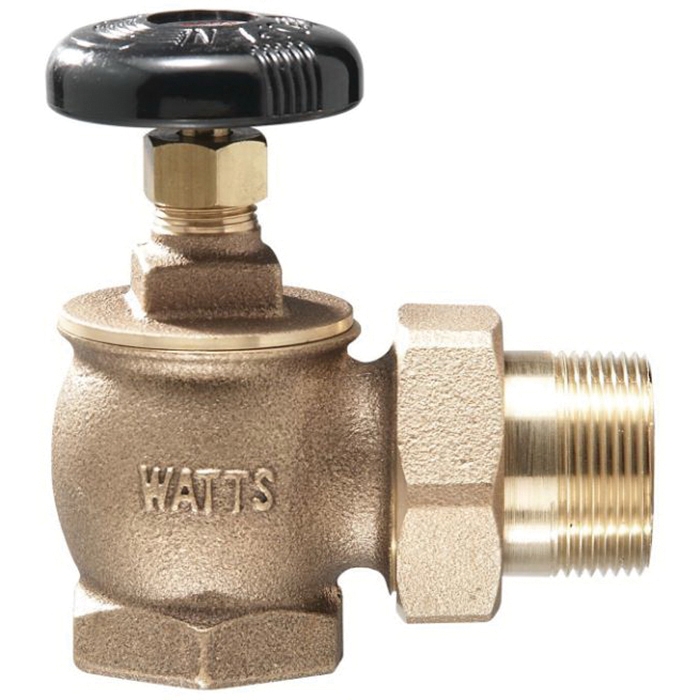

RA-1-AP Bronze Steam Radiator Angle Valve, 1/2 in IPS x 1/2 in, FIP x Male Union, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0067450
  • MPN: 0067450
  • UPC: 098268394863
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in IPS x 1/2 in
Connection Type      :      FIP x Male Union
Dimension      :      3-7/8 in H
Disc Material      :      Rubber NBR
Item Name      :      Steam Radiator Angle Valve
Material Specifications      :      ASTM 209-1100, ASTM B16, ASTM B584, ASTM B584 C84400, C85700
Material      :      Bronze
Operator Type      :      Plastic Handwheel
Packaging Material      :      Teflon
Pressure Rating      :      60 psi Non-Shock Hot Water, 15 psi Non-Shock Saturated Steam
Series      :      RA-1-AP
Service Type      :      Steam
Stem Material      :      Brass
  • Lead-free
  • Rising stem
  • Renewable composition disc
  • Bronze bonnet, brass retainer, brass disc nut, brass packing nut, plastic handwheel, steel AISI 1020 screw, aluminum name plate, brass swivel, brass nut

Standards/Certifications: ISO 9001 standard

Applications: For shutoff valve in steam or hydronic heating systems and heating applications
