Watts 0387082

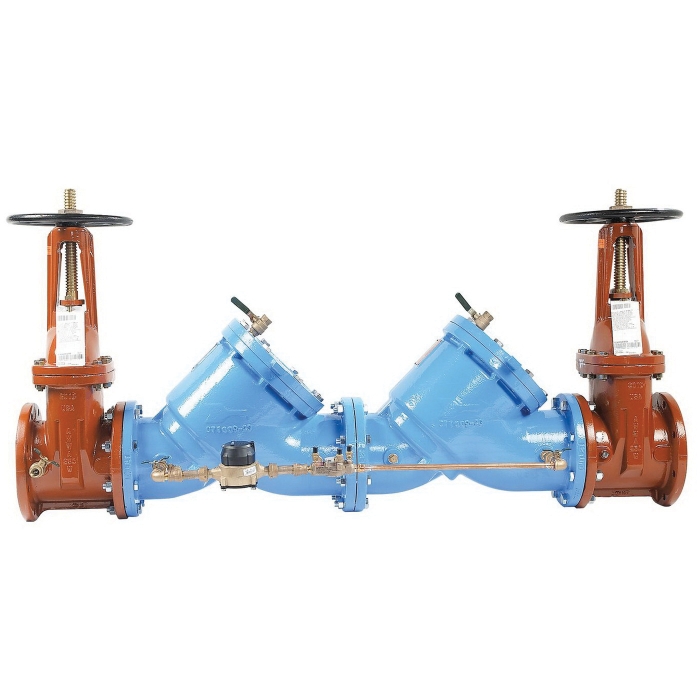

709DCDA-OSY-GPM Cast Iron Double Check Detector Assembly with OSY Resilient Seated Shut-Off Gate Valve, 6 in, Flanged

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0387082
  • MPN: 0387082
  • UPC: 098268023961
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      6 in
Connection Type      :      Flanged
Dimension      :      62-1/2 in L x 23-1/2 in W
Disc Material      :      Rubber
Finish      :      Epoxy Coated
Item Name      :      Double Check Detector Assembly with OSY Resilient Seated Shut-Off Gate Valve
Material      :      Cast Iron
Model      :      709DCDA-OSY-GPM
Pressure Rating      :      175 psi
Seat Material      :      Bronze
Series      :      709DCDA
Temperature Rating      :      33 - 110 deg F
Trim Material      :      Stainless Steel

This 6 in double check detector assembly prevents backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a gallons per minute meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. Its compact epoxy coated cast iron unibody and modular check design facilitate simple and easy installation and maintenance. Its maximum working pressure is 175 psi.

  • Modular check assemblies
  • Body construction fused epoxy coated cast iron
  • Outside screw and yoke shut-offs
  • Detector bypass
  • Replaceable bronze seats
  • Maximum flow at low pressure drop
  • Compact for economy combined with performance
  • Design simplicity for easy maintenance
  • Furnished with 5/8 x 3/4 in bronze meter
  • No special tools required for servicing

Standards/Certifications: ASSE 1048, UPC, cULus, AWWA C510, UL/FM approved, CSA B.64 certified

Applications: For health hazard applications
