Ames Fire & Waterworks 0062495

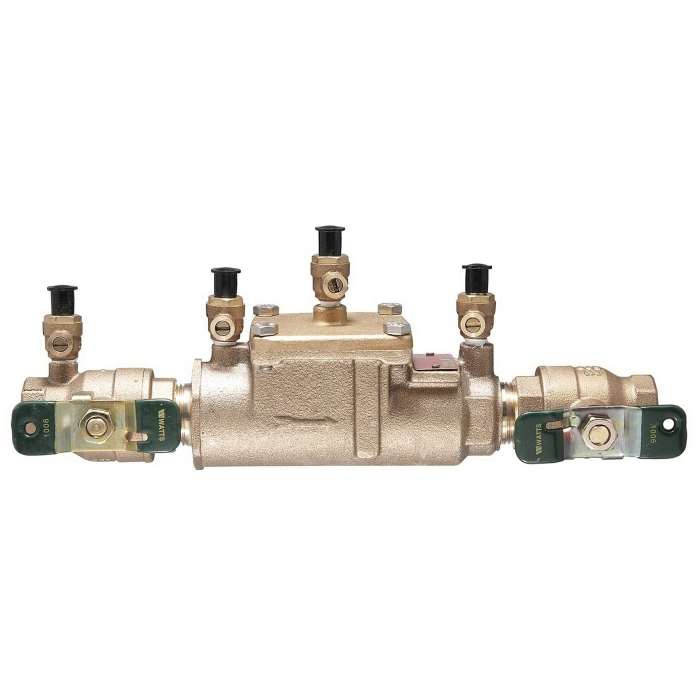

2000B 2 Bronze Double Check Valve Assembly with 1/4-Turn Shut-Off Ball Valve, 2 in, FNPT

  • Manufacturers: Watts
  • Brand Name: Ames Fire & Waterworks
  • PN: 2000B.2
  • MPN: 0062495
  • UPC: 098268796896
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      FNPT
Disc Material      :      Rubber
Item Name      :      Double Check Valve Assembly with 1/4-Turn Shut-Off Ball Valve
Material      :      Bronze
Model      :      2000B 2
Operator Type      :      Lever Handle
Pressure Rating      :      175 psi
Seat Material      :      Rubber
Series      :      2000B
Temperature Rating      :      33 - 180 deg F

This 2 in double check valve assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact modular design with a single access cover for easy maintenance is approved for horizontal and vertical installations. This assembly consists of a bronze body, quarter turn ball valve shut-offs with lever handles, NPT end connections, two positive seating check modules and top mounted test cocks.

  • Low pressure drop
  • No special tools are required
  • Top mounted ball valve type test cocks
  • Compact design
  • Modular construction
  • One top entry access cover for easy maintenance

Applications: For non-health hazard applications

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3983_Instal.pdf
