Watts 0072205

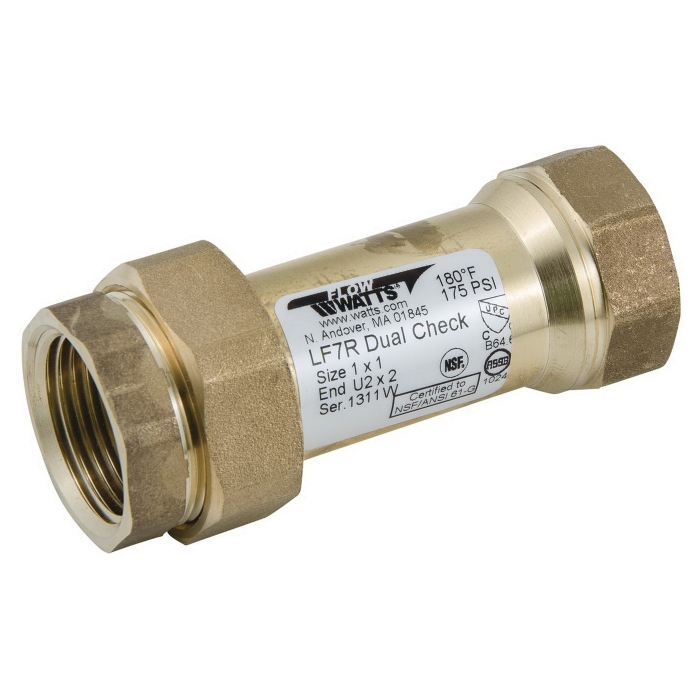

LF7RU2-2 Brass Dual Check Valve, 1 in, Female Union x FNPT, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0072205
  • MPN: 0072205
  • UPC: 098268533590
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      Female Union x FNPT
Dimension      :      3-7/8 in L x 1-7/8 in H
Disc Material      :      Santoprene
Item Name      :      Dual Check Valve
Material      :      Brass
Model      :      LF7RU2-2
Pressure Rating      :      10 - 175 psi
Seat Material      :      EPDM
Series      :      LF7R
Temperature Rating      :      33 - 180 deg F

This 1 by 1 in lead-free dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. The valve consists of a lead free brass body construction, with two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 psi (69 kPa) and maximum working pressure is 175 psi (12 bar).

  • Lead-free brass body for durability
  • Can be installed vertically or horizontally
  • Compact design
  • Bronze body finish
  • In-line body pattern
  • Non-health hazard
  • Continuous pressure operation
  • Backsiphonage protection type
  • Engineered composite check modules
  • Stainless steel springs

Standards/Certifications: ASSE 1024, UPC approved, ANSI/NSF 61 annexure G, cCSAus B64.6 certified

Applications: For light commercial and residential applications
