Watts 0009898

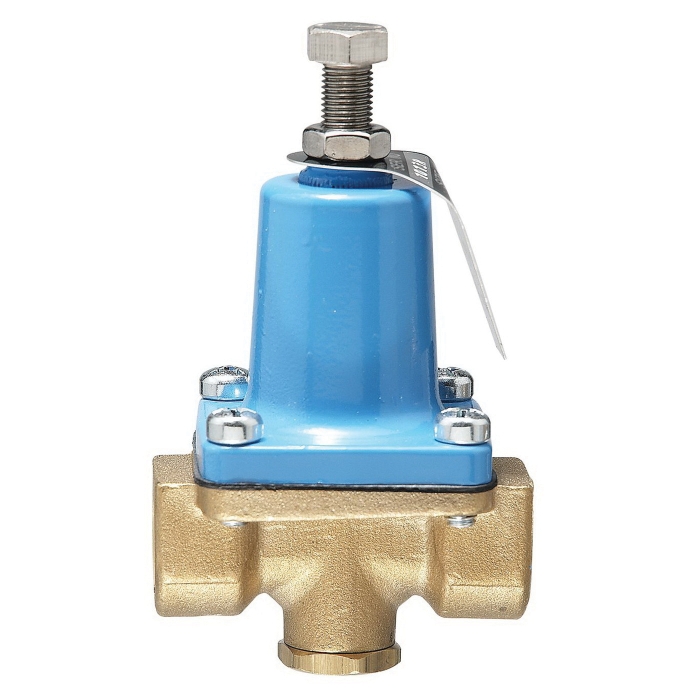

Brass 3-Way Water Pressure Regulator, 1/2 in, FNPT, 20 - 175 psi, Lead-Free

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 0009898
  • MPN: 0009898
  • UPC: 098268430530
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2-1/8 in L x 4-3/8 in H
Disc Material      :      Buna-N
Item Name      :      Water Pressure Regulator
Material      :      Brass
Operator Type      :      Tee Handle
Pressure Rating      :      20 - 175 psi
Stem Material      :      Stainless Steel
Temperature Rating      :      0 - 140 deg F
Trim Material      :      Stainless Steel
Type      :      3-Way

This 1/2 in lead-free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications.

  • Lead-free
  • 3-way regulator
  • Oversized orifice
  • Stainless steel stem and spring
  • Tee handle adjustment
  • Aluminum spring cage, reinforced Buna-N diaphragm

Standards/Certifications: ANSI/NSF 61 annexure G certified

Applications: For small general purpose applications
