Mueller Steam Specialty M6717871

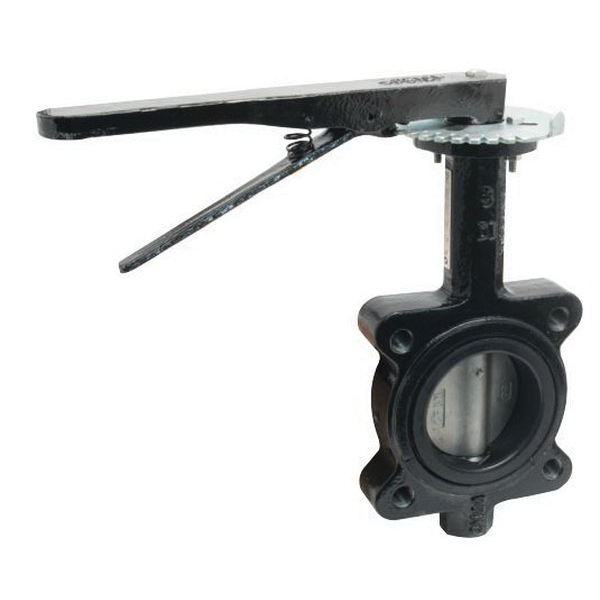

88 Ductile Iron Full-Lug Butterfly Valve, 5 in

  • Manufacturers: Watts
  • Brand Name: Mueller Steam Specialty
  • PN: 5BFV
  • MPN: M6717871
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5 in
Disc Material      :      316 Stainless Steel
Item Name      :      Butterfly Valve
Material      :      Ductile Iron
Model      :      88
Operator Type      :      10-Position Lever Handle
Pressure Rating      :      200 psi
Seat Material      :      EPDM
Stem Material      :      316 Stainless Steel
Type      :      Full-Lug

These soft-seated butterfly valves are designed for a variety of general applications in the control of water, air, oil, gases and corrosive media. Examples of applications where these valves can be used are irrigation, cooling water and fire protection systems. They are equally effective for on-off, throttling or isolation service requirements. Lug style valves are designed for dead-end service to the full pressure rating of the valve. Model 88 butterfly valve is especially well suited for higher velocity service and vacuum service.

  • Phenolic backed
  • Non-collapsible, resilient elastomer seat
  • ISO 5211 mount is standard, double D shaft is standard 2 - 10 in while keyway design is supplied 12 - 24 in
  • Stem is a 1-piece design for maximum strength and is retained in valve body for blowout proof operation, 316SS is standard for 316SS discs (2 - 12 in)
  • Stem bushings provide shaft support for proper stem alignment and minimize stem deflection, Duralon bushings are standard material in 2 - 12 in sizes
  • Stem seals prevent external contamination of stem area and provide backup for the primary shaft seal formed by the disc/seat interface
  • ASTM-A-536 ductile iron body available in full lug (Model 88) designed for use between ANSI 125 and 150 flanges, face-to-face dimension comply with API 609 and MSS-SP-67

Standards/Certifications: NSF/ANSI 61-G

Applications: For irrigation, cooling water and fire protection systems
