Watts 88005689
LFFBV-3C-M1 Copper Silicon Alloy 2-Piece Full-Port Ball Valve, 1 in, FNPT
- Manufacturers: Watts
- Brand Name: Watts
- PN: 88005689
- MPN: 88005689
- UPC: 098268163834
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 30/Carton
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 1 in |
| Connection Type | : | FNPT |
| Dimension | : | 2-3/8 in L |
| Item Name | : | Ball Valve |
| Material | : | Copper Silicon Alloy |
| Model | : | LFFBV-3C-M1 |
| Operator Type | : | Lever Handle |
| Pressure Rating | : | 600 psi WOG Non-shock, 150 psi WSP |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | -40 to 400 deg F |
| Trim Material | : | Brass/PTFE |
| Type | : | 2-Piece, Full-Port |

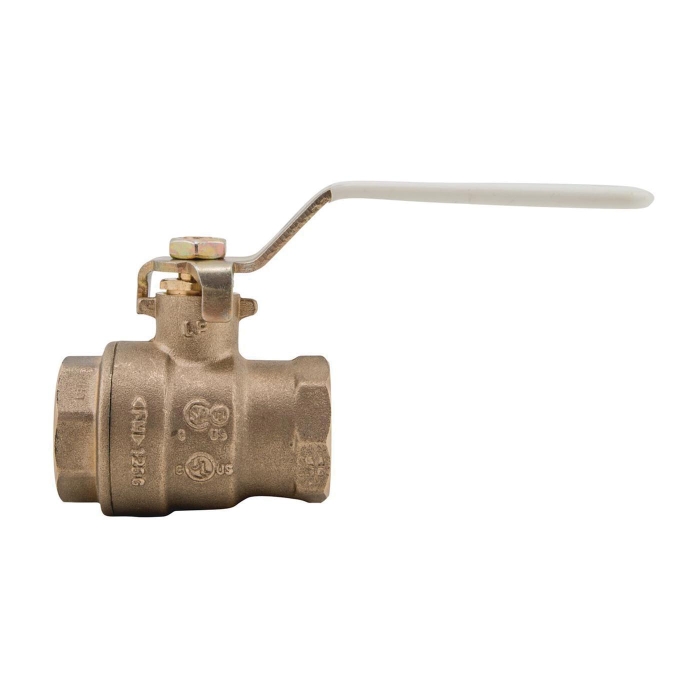

This 1 in 2-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead-free brass body and adapter, female threaded end connections, adjustable packing gland, chrome-plated lead-free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem and steel handle. The temperature range is -40 to 400 deg F and the pressure rating is 600 psi WOG non-shock and 150 psi WSP.
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Lead-free brass body and adapter
- Machined chrome-plated lead-free brass ball
- Adjustable stem packing gland for easy maintenance
- PTFE stem packing seal, thrust washer and seats for reliable performance
- Bottom loaded blowout proof stem
Standards/Certifications: CSA certified, FM approved, NSF-61/ANSI 8, UL listed
Applications: For residential, commercial and industrial
