Watts 88005702

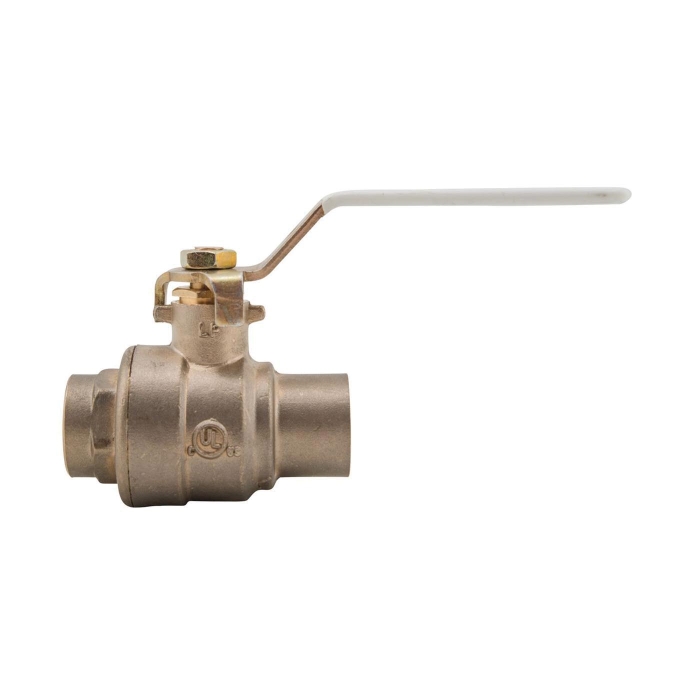

LFFBVS-3C-M1 Copper Silicon Alloy 2-Piece Full-Port Ball Valve, 1 in, Socket

  • Manufacturers: Watts
  • Brand Name: Watts
  • PN: 88005702
  • MPN: 88005702
  • UPC: 098268163957
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1 in
Connection Type      :      Socket
Dimension      :      3-1/4 in L
Item Name      :      Ball Valve
Material      :      Copper Silicon Alloy
Model      :      LFFBVS-3C-M1
Operator Type      :      Lever Handle
Pressure Rating      :      600 psi WOG Non-shock, 150 psi WSP
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -40 to 400 deg F
Trim Material      :      Brass/PTFE
Type      :      2-Piece, Full-Port

This 1 in 2-piece full port lead-free ball valve is used in residential, commercial and industrial applications for potable water and a full range of liquids and gases. It features a lead-free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer and adjustable stem packing gland, stem packing nut, chrome-plated lead-free brass ball, lead-free brass adapter and steel handle. Certified NSF-61/ANSI 8, UL listed and FM approved.

  • Fluorocarbon elastomer stem O-ring prevents stem leaks
  • Lead-free brass body and adapter
  • Machined chrome-plated lead-free brass ball
  • Adjustable stem packing gland for easy maintenance
  • PTFE stem packing seal, thrust washer and seats for reliable performance
  • Bottom loaded blowout proof stem

Standards/Certifications: NSF-61/ANSI 8, UL listed, FM approved

Applications: For residential, commercial and industrial
