Delta Faucet B510LF
Send Print
  1. pin-int

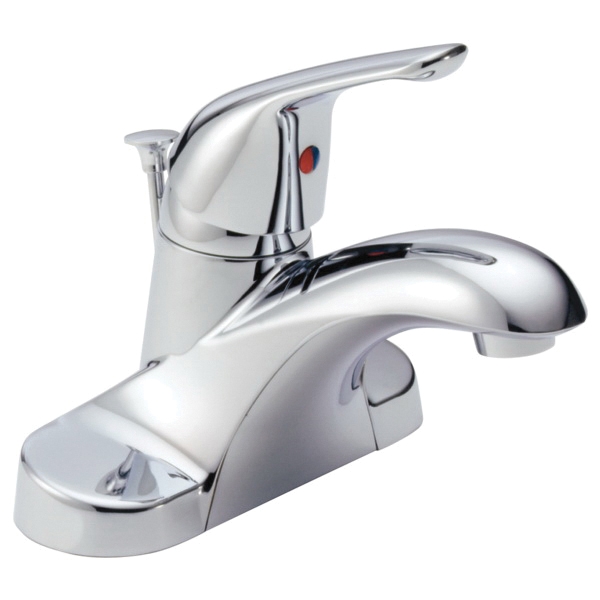

Delta Faucet B510LF

Brass 1-Handle Centerset Bathroom Faucet, Chrome, 1.2 gpm at 60 psi, 4 in Centers

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: DEB510LF
  • MPN: B510LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-1/4 in
Deck to Aerator Height      :      2-5/8 in
Escutcheon Size      :      6-1/8 in
Faucet Center Size      :      4 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      IPS
Faucet Hole Size      :      1-1/2 in
Faucet Mount      :      Deck
Finish      :      Chrome
Flow Rate      :      1.2 gpm at 60 psi
Handle Material      :      Metal
Handle Type      :      Lever
Height      :      7-1/8 in
Item Name      :      Bathroom Faucet
Material      :      Brass
Number of Handles      :      1
Number of Holes      :      3
Spout Height      :      4 in
Spout Reach      :      4-1/4 in
Type      :      Centerset
Valve Type      :      Washerless Ball
WaterSense Labelled      :      Yes

You can install with confidence, knowing that Delta faucets are backed by our lifetime limited warranty. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard-saving you money without compromising performance.

  • Drain pop up in matching finish included
  • Solid brass fabricated body
  • All operating parts are replaceable from the top
  • Control mechanism is the rotating stainless steel ball type with replaceable non-metallic seats
  • Control handle shall return to neutral position when valve is turned-off
  • Metal drain with pop-up type fitting with plated flange and stopper
  • Lifetime limited warranty

Standards/Certifications: ANSI/ICC A117.1, ASME A112.18.1, A112.18.2, CSA B125.1, B125.2

Applications: For commercial

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14541_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14541_Spec.pdf
