Delta Faucet R10000-MF
Send Print
  1. pin-int

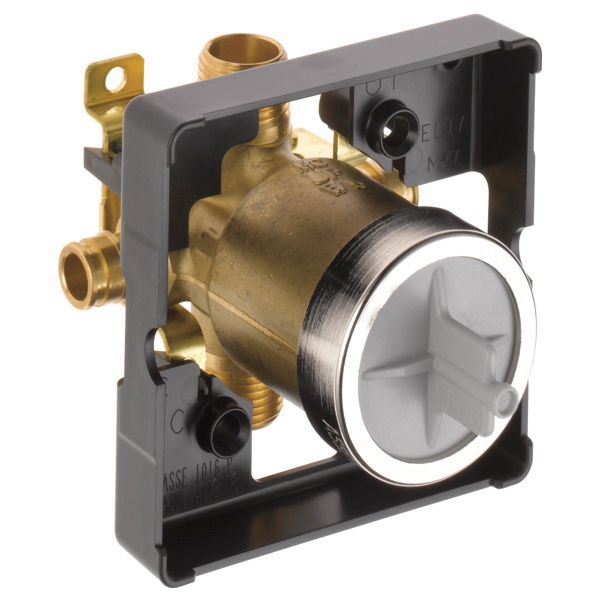

Delta Faucet R10000-MF

MultiChoice Forged Brass Universal Rough Body Valve, 1/2 in, PEX Cold Expansion, 4 in L

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: DER10000-MF
  • MPN: R10000-MF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      PEX Cold Expansion
Height      :      4 in
Item Name      :      Rough Body Valve
Length      :      4 in
Material      :      Forged Brass
Mounting      :      Thin-Wall
Theme/Style      :      MultiChoice
Type      :      Universal
Width      :      4-7/8 in
  • Multi-choice universal valve body only
  • Accepts single, dual or dual thermostatic cartridge
  • Cartridge ships with trim
  • Back-to-back installation capability
  • Mounting bracket reduces rocking by providing a sturdy means of securing the valve to a stringer
  • Square plasterguard allows for simple 90 deg cuts and snaps into place
  • Heat-resistant pressure test cap allows for air or water testing before valve cartridge is installed
  • Limited lifetime warranty

Standards/Certifications: ASME A112.18.1, CSA B125.1

Applications: For MultiChoice universal single or 2-function trim

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22537_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22537_Spec.pdf
