Delta Faucet R2700

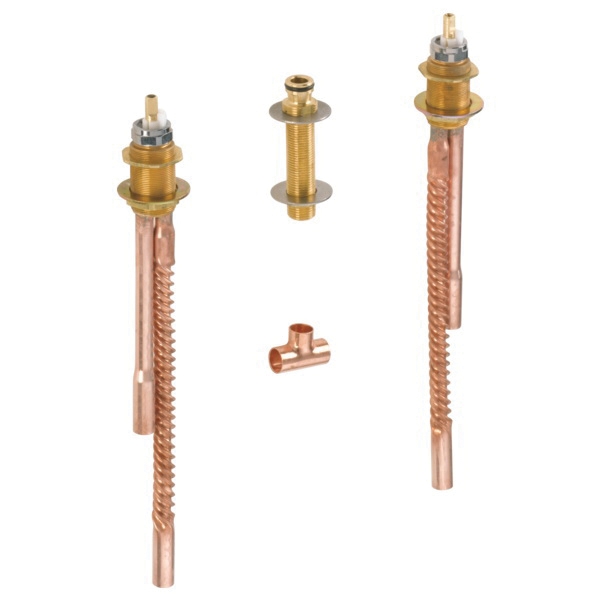

Brass Deck Mount 3-Hole Faucet Rough-In Kit, 5/8 in, Copper Tube

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: DER2700
  • MPN: R2700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5/8 in
Connection Type      :      Copper Tube
Item Name      :      Faucet Rough-In Kit
Material      :      Brass
Mounting      :      Deck
Number of Faucet Holes      :      3
  • Solid fabricated brass end valves
  • 3-hole flexible deck or ledge mount installation
  • Backed by Delta Faucet's lifetime limited warranty
  • 1-1/4 in deck thickness
  • Washerless stem cartridge
  • 5/8 in OD corrugated copper supply outlet tubes
  • Widespread 16 in maximum centers without using additional tubing
  • Flexible deck or ledge mount installation
  • Control mechanism is a rotating cylinder type with stainless steel plate and 180 deg rotation
  • Hot and cold stems are interchangeable
  • Temperature and volume controlled by handle
  • Washerless
  • 8 - 16 in center to center installation

Standards/Certifications: ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22580_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22580_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22580_Tech.pdf
