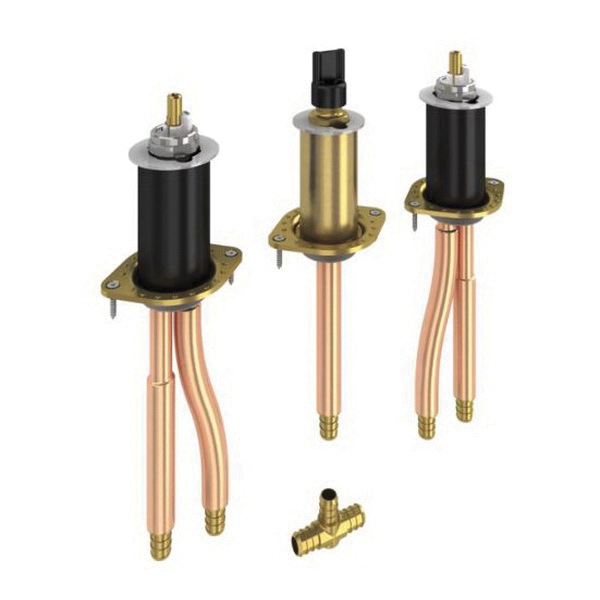

Delta Faucet R2707-PX

Brass Rough-In Kit, 5/8 in, PEX Crimp Ring

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: DER2707-PX
  • MPN: R2707-PX
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5/8 in
Connection Type      :      PEX Crimp Ring
Flow Rate      :      18 gpm
Item Name      :      Rough-In Kit
Material      :      Brass
Mounting      :      Flexible Deck
Number of Handles      :      2
  • 3-hole Roman tub rough-in installation kit
  • PEX tubing installation allows flexible handle spacing
  • Self-locating basis
  • Tighten/adjust from above the deck
  • Installed before mud and tile applied in thick deck situation
  • Temperature and volume controlled by handle
  • Solid fabricated brass end valves and spout body
  • Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180 deg rotation, with replaceable seats operating in stainless steel lined sockets
  • Hot and cold stems are interchangeable
  • 8 - 16 in center to center installation
  • 2-1/2 in maximum deck thickness
  • Lifetime limited warranty on parts
  • 5-years limited warranty on electronic parts (other than batteries) or for commercial users, 1-year from the date of purchase

Standards/Certifications: ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14551_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14551_Spec.pdf
