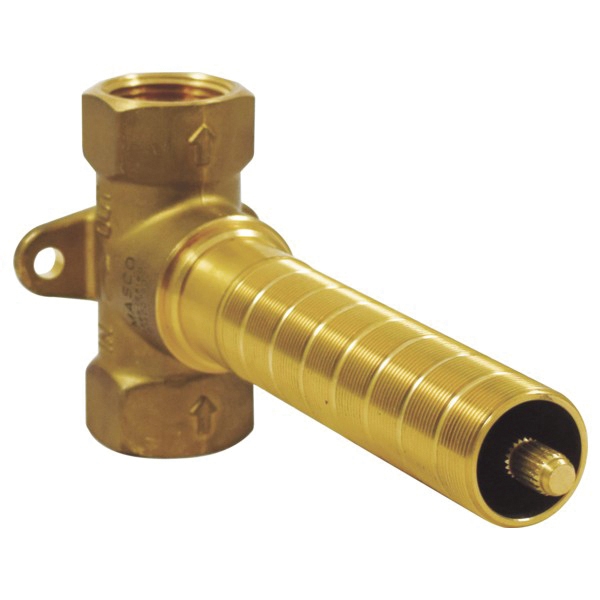

Delta Faucet R35600

Sensori Forged Brass Volume Control Rough-In Valve, 3/4 in, 6-3/4 in L

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: BRR35600
  • MPN: R35600
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Flow Rate      :      16.2 gpm at 60 psi
Includes      :      Ceramic Cartridge Assembly
Item Name      :      Rough-In Valve
Length      :      6-3/4 in
Material      :      Forged Brass
Pressure Rating      :      45 - 80 psi
Series      :      Sensori
Type      :      Volume Control
Width      :      3 in
  • Volume controls are required for every outlet and every set of body sprays (up to max flow)
  • Extension kit not required, rough accommodates up to 3-1/4 in wall thickness
  • Provides precise handle alignment
  • 1-Piece brass construction cartridge and stem, solid brass extension sleeve
  • Integrated friction bearing provides smooth handle operation
  • Volume control flows up to 16.2 gpm at 60 psi
  • Maximum 8.2 gpm at 60 psi per volume control when paired with Sensori thermostatic trim
  • Limited lifetime warranty

Standards/Certifications: ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31336_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31336_Spec.pdf
