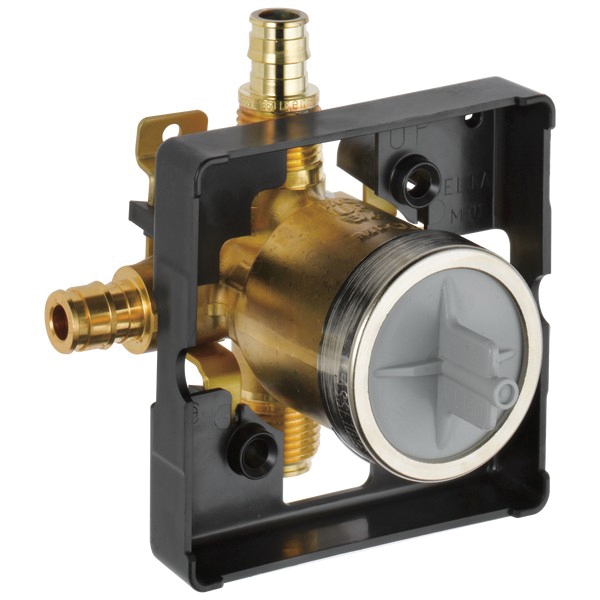

Delta Faucet R10000-PFS-MF

MultiChoice Forged Brass Universal Rough-In Valve Body, 1/2 in, PEX Cold Expansion, 4 in L

  • Manufacturers: Delta Faucet
  • Brand Name: Delta Faucet
  • PN: DER10000-PFS-MF
  • MPN: R10000-PFS-MF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      PEX Cold Expansion
Height      :      4-7/8 in
Item Name      :      Rough-In Valve Body
Length      :      4 in
Material      :      Forged Brass
Mounting      :      Wall
Pressure Rating      :      200 psi Air and 300 psi Water
Series      :      MultiChoice
Theme/Style      :      Traditional
Type      :      Universal
Width      :      4 in
  • Accepts single, dual or dual thermostatic cartridge
  • Cartridge ships with trim
  • Back-to-back capability
  • Features blocked tub port and PEX shower riser
  • Can be tested with air (200 psi) or water (300 psi) without valve, using supplied test cap
  • Square plaster guard allows for right angle cuts
  • Thin wall mounting
  • Limited lifetime warranty

Standards/Certifications: ASME A112.18.1, CSA B125.1, California Proposition 65

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31545_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS31545_Spec.pdf
