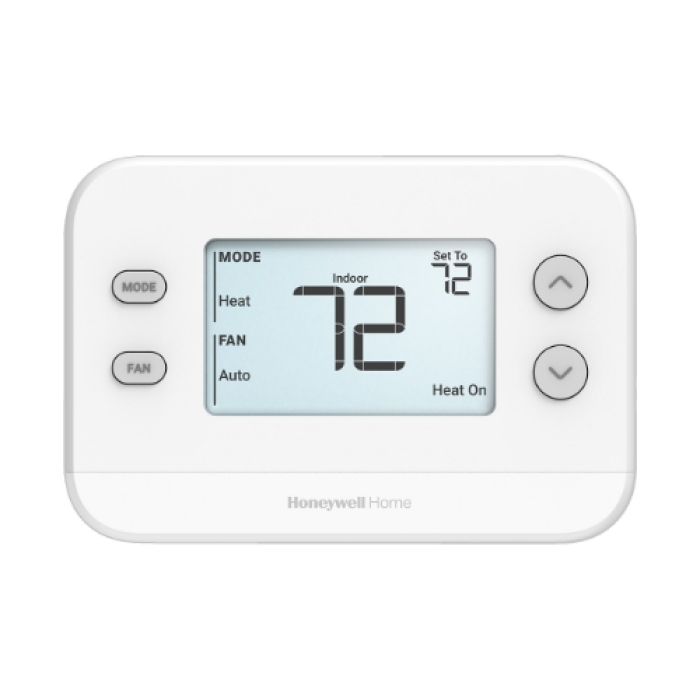

Honeywell TH1320U4002/U

FocusPRO® N100 Non-Programmable Thermostat 3H/2CHeatPump+2H/2C Conventional

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: TH1320U4002/U
  • MPN: TH1320U4002/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.02 - 1 A Running and Heat, 0.02 - 0.05 A Fan
Changeover      :      Auto/Manual
Color      :      Premier White
Dimension      :      5-1/8” W x 3-7/16” H x 1-3/16” D
Display Type      :      Digital
Frequency Rating      :      50/60 Hz
Humidity Rating      :      5 - 90% Relative Humidity, Non-Condensing
Item Name      :      Non-Programmable Thermostat
Model      :      FocusPRO® N100
Mounting      :      Horizontal
Power Source      :      Battery/Hardwired
Series      :      TH6220D
Setting Temperature      :      40 - 90 deg F Heat, 50 - 99 deg F Cool
Stages      :      3H/2CHeatPump+2H/2C
Switch Position      :      HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON (Fan)
Terminal Designation      :      R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A
Voltage Rating      :      20 - 30 VAC
  • Supports single-stage 1H/1C for TH1110U4000/U or up to 3H/2C heat pump and 2H/2C conventional for TH1320U4002/U or up to 2H/1C heat pump and 1H/1C conventional for TH1210U4001/U
  • UWP® wall plate supports speedy installation and easy upgrade
  • Private label with customized snap-on accent piece
  • Large display with clear font
  • Optional always-on backlight when hardwired
  • Customizable display settings

Applications: For heat/cool or heat pump with auxiliary heat
